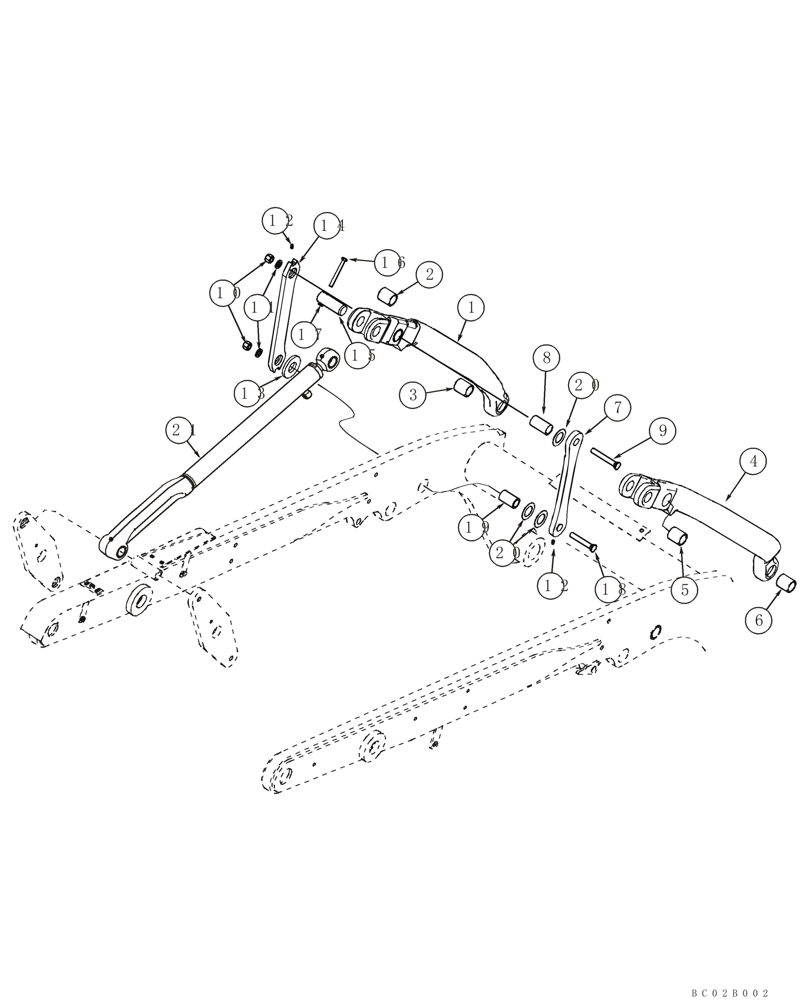

Запчасти Case IH 450 (09-02) - FRAME, FRONT - LOADER LINKAGE (09) - CHASSIS

1

229840A2

ROD, CONNECTING

Left Hand; Incl. 2, 3

1шт.

2

243266A1

BUSHING,38.15mm ID x 48mm OD x 50mm L

38.1mm ID x 48mm OD x 50mm Long

1шт.

3

243311A1

BUSHING,35.15mm ID x 45mm OD x 50mm L

35.1mm ID x 45mm OD x 50mm Long

1шт.

4

229839A2

ROD, CONNECTING

Right Hand; Incl. 5, 6

1шт.

5

243266A1

BUSHING,38.15mm ID x 48mm OD x 50mm L

38.1mm ID x 48mm OD x 50mm Long

1шт.

6

243311A1

BUSHING,35.15mm ID x 45mm OD x 50mm L

35.1mm ID x 45mm OD x 50mm Long

1шт.

7

291629A1

POWER ARM

Inner

2шт.

8

303620A1

PIN

27mm ID x 38mm OD x 70mm Long

2шт.

9

420-21072

CARRIAGE BOLT,#3, 5/8" - 11 x 4 1/2", Gr 8

2шт.

10

232-41110

NUT,5/8"-11, GC

4шт.

11

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Replaces 896-11016

4шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

No longer used, Order 80714

4шт.

13

254206A1

SPACER,38.35mm ID x 82.50mm OD x 8.70/9.50mm Thk

Loader Bucket

2шт.

14

243268A1

ROD, CONNECTING

Outer

2шт.

15

243341A1

PIN

2шт.

16

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

Replaces 814-10100

2шт.

17

86512554

NUT,M10 x 1.5, Cl 10

Replaces 832-41410

2шт.

18

420-21064

CARRIAGE BOLT,#3, 5/8" - 11 x 4", Gr 8

2шт.

19

303621A1

BUSHING

27mm ID x 38mm OD x 61.16mm Long

2шт.

20

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

6шт.

21

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

Bucket; See Figure 08-12

2шт.

327411A1R

REMAN-HYD CYLINDER

450CT BSN N7M464019 (4/05 - 12/07), 450 TIER 2, P.I.N. N7M458414 & PRIOR (1/05 - 12/07)

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.
