Артикул
Название
Примечание
Количество
REF
INSTRUCTION

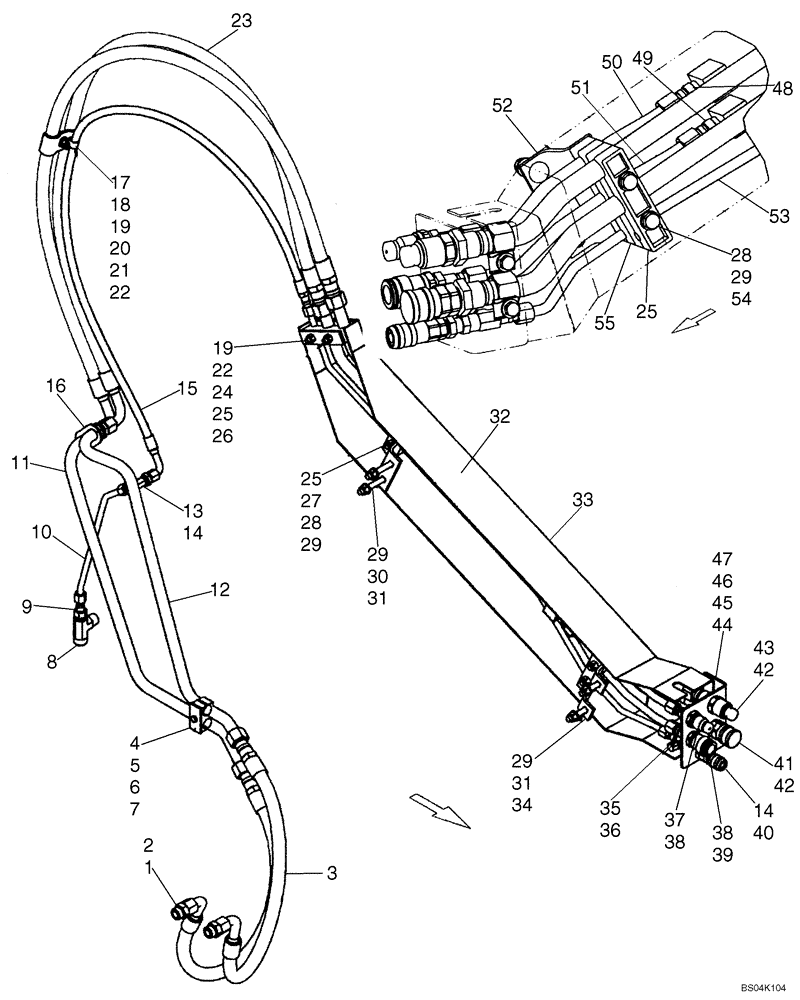

MODELS WITH PILOT CONTROL
1шт.
2
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
3
87433172
HOSE ASSY.
2шт.
4
225529A1
CLAMP,Dual, 25.4mm ID
Clamp
1шт.
5
257859A1
PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk
PLATE,SPACER Clamp
1шт.
6
9628098
NUT,M8 x 1.25, Cl 10
1шт.
7
16044321
BOLT,M8 x 1.25 x 55mm, Cl 8.8
1шт.
8
87039438
TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br
1шт.
9
87029966
REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC
1шт.
10
87432444
HYD TUBE,12.7 mm OD x 360.4, 210 mm L
Loader Arm Case Drain, Rear
1шт.
11
87432449
HYD TUBE,25.40 mm OD x 831.9 mm L
Valve, Auxiliary
1шт.
12
87432450
HYD TUBE,25.40 mm OD x 721.7, 239.3 mm L
Valve, Auxiliary
1шт.
13
687040
ELBOW
1шт.
14
524036
BHD LOCK NUT,Blkhd, 3/4"-16
2шт.
15
87432975
HOSE ASSY.
1700 mm (66.9 in) Loader Arm Case Drain; If Used
1шт.
15
87460872
HOSE
1800 mm (70.8 in) Loader Arm Case Drain; If Used
1шт.
16
87017999
SUPPORT
2шт.
17
276433A1
CLAMP
1шт.
18
256690A1
SPACER
Hose Clamp
1шт.
19
140017
WASHER,M10 x 20mm OD x 2mm Thk
3шт.
20
412151
BOLT,M10 x 1.5 x 61.58mm, Cl 8.8
1шт.
21
86624005
CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type
If Used With Hose 87432975, Ref 15
1шт.
21
87029955
CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type
If Used With Hose 87460872, Ref 15
1шт.
22
86512554
NUT,M10 x 1.5, Cl 10
3шт.
23
87433171
HOSE ASSY.
2шт.
24
120073
BOLT,Hex, M10 x 86.58mm, Cl 8.8
2шт.
25
87449945
CLAMP
6шт.
26
256976A1
BAR
Clamp
1шт.
27
43158
BOLT,Hex, M12 x 80mm, Cl 8.8
2шт.
28
140018
WASHER,13.5mm ID x 24mm OD x 2.5mm Thk
4шт.
29
412672
NUT,Hex, M12 x 1.75, Cl 10
8шт.
30
300662
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8
2шт.
31
86625255
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
4шт.
32
87450047
BRACKET
Rear
1шт.
33
87458896
COVER
Cover
1шт.
35
87029963
HYD CONNECTOR,3/4" Male JIC x 3/4" Male JIC x 3/4" Female JIC
1шт.
38
595460
BHD LOCK NUT,7/8" - 14
2шт.
39
393394A1
COUPLING, BREAK AWAY
1/2 Female
1шт.
40
87019286
COUPLING
.38 Female
1шт.
41
87022671
COUPLING, QUICK, FEM
5/8 Female; Mating Conector For 87022671 (Female) Is 395268A1 (Male)
1шт.
42
86513144
BHD LOCK NUT,Blkhd, 1 5/16"-12
2шт.
43
87022672
QUICK MALE COUPLING
5/8 Male; Mating Connector For 87022672 (Male) Is 395267A1 (Female)
1шт.
44
87450053
BRACKET
1шт.
45
833-40310
NUT,M10, U
2шт.
48
87450055
HYD TUBE,25.4 mm OD x 1012.9, 753.7 mm L
High Flow
1шт.
49
87450056
HYD TUBE,25.4 mm OD x 1051.4, 780.3 mm L
High Flow
1шт.
50
87450057
HYD TUBE,15.88 mm OD x 354.1, 21.8 mm L
Auxiliary
1шт.
51
87450058
HYD TUBE,15.88 mm OD x 376.5, 26.6 mm L
Auxiliary
1шт.
52
87450046
BRACKET
Front
1шт.
53
87450054
HYD TUBE,12.7 mm OD
Case Drain
1шт.
54
395277
BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8
2шт.
55
87449943
CLAMP
2шт.
Выбрано товаров: 58
