Запчасти Case IH 450 (08-16) - HIGH FLOW - AUXILIARY SYSTEM (08) - HYDRAULICS

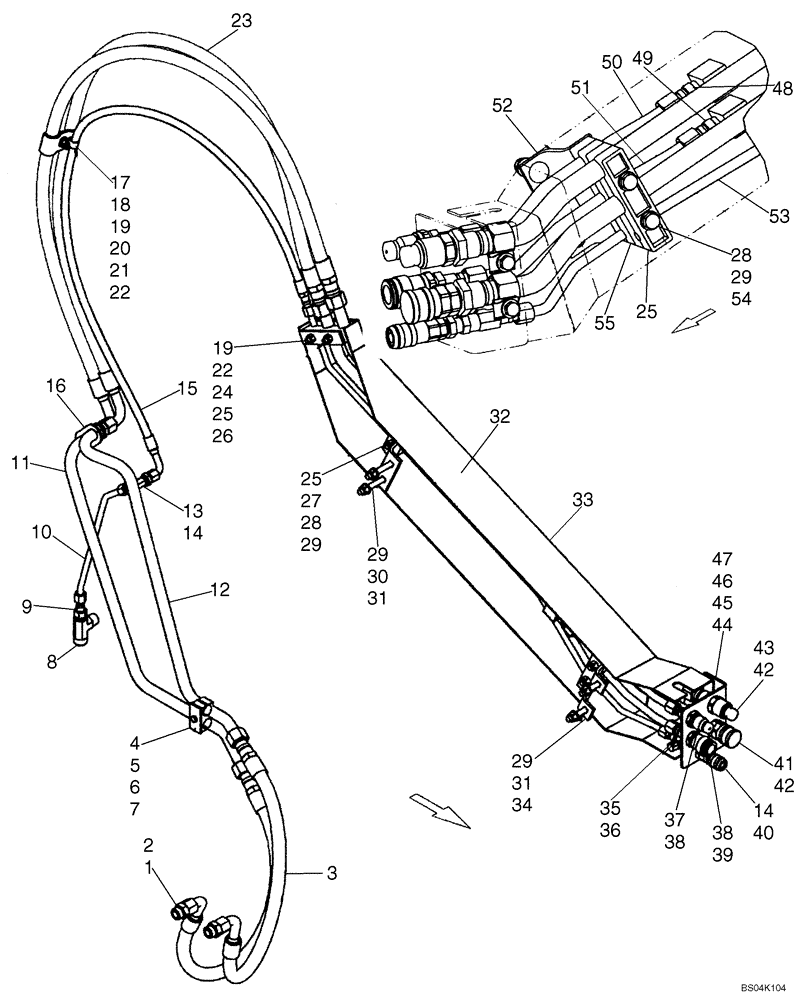

Схема запчастей Case IH 450 - (08-16) - HIGH FLOW - AUXILIARY SYSTEM (08) - HYDRAULICS
31
9
33
14
14
12
7
22
48
49
15
29
2
47
36
42
44
21
27
52
20
29
39
53
37
40
26
41
43
32
25
55
23
45
25
50
28
19
4
46
22
51
19
28
13
38
24
42
5
29
18
31
10
1
25
34
30
17
54
16
11
29
6
8
3
38
35

Артикул

Название

Примечание

Количество

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

87433172

HOSE ASSY.

2шт.

4

225529A1

CLAMP,Dual, 25.4mm ID

Clamp

1шт.

5

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Clamp

1шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

1шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

8

218-566

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.

9

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.

10

87432444

HYD TUBE,12.7 mm OD x 360.4, 210 mm L

Loader Arm Case Drain, Rear

1шт.

11

87432449

HYD TUBE,25.40 mm OD x 831.9 mm L

Valve, Auxiliary

1шт.

12

87432450

HYD TUBE,25.40 mm OD x 721.7, 239.3 mm L

Valve, Auxiliary

1шт.

13

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

14

524036

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

15

87432975

HOSE ASSY.

1700 mm (66.9 in) Loader Arm Case Drain; If Used

1шт.

15

87460872

HOSE

1800 mm (70.8 in) Loader Arm Case Drain; If Used

1шт.

16

87017999

SUPPORT

2шт.

17

276433A1

CLAMP

1шт.

18

256690A1

SPACER

Hose Clamp

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

20

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

21

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

If Used With Hose 87432975, Ref 15

1шт.

21

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

If Used With Hose 87460872, Ref 15

1шт.

22

86512554

NUT,M10 x 1.5, Cl 10

3шт.

23

87433171

HOSE ASSY.

2шт.

24

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

25

87449945

CLAMP

6шт.

26

256976A1

BAR

Clamp

1шт.

27

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

28

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

29

832-41412

NUT,M12 x 1.75, Cl 10

8шт.

30

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

31

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

32

87450047

BRACKET

Rear

1шт.

33

87458896

COVER

Cover

1шт.

34

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

35

218-5492

HYD CONNECTOR,1/2" x 1/2" x 3/8" Run, Swivel 37 Degree Fitting

1шт.

36

574342

CAP,9/16" - 18 JIC

1шт.

37

87417308

COUPLING, BREAK AWAY

1/2 Male

1шт.

38

595460

BHD LOCK NUT,7/8" - 14

2шт.

39

393394A1

COUPLING, BREAK AWAY

1/2 Female

1шт.

40

87019286

COUPLING

.38 Female

1шт.

41

87022671

COUPLING, QUICK, FEM

5/8 Female; Mating Conector For 87022671 (Female) Is 395268A1 (Male)

1шт.

42

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

43

87022672

QUICK MALE COUPLING

5/8 Male; Mating Connector For 87022672 (Male) Is 395267A1 (Female)

1шт.

44

87450053

BRACKET

1шт.

45

833-40310

NUT,M10, U

2шт.

46

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

47

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

48

87450055

HYD TUBE,25.4 mm OD x 1012.9, 753.7 mm L

High Flow

1шт.

49

87450056

HYD TUBE,25.4 mm OD x 1051.4, 780.3 mm L

High Flow

1шт.

50

87450057

HYD TUBE,15.88 mm OD x 354.1, 21.8 mm L

Auxiliary

1шт.

51

87450057

HYD TUBE,15.88 mm OD x 354.1, 21.8 mm L

Auxiliary

1шт.

52

87450046

BRACKET

Front

1шт.

53

87450054

HYD TUBE,12.7 mm OD

Case Drain

1шт.

54

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

55

87449943

CLAMP

2шт.

Выбрано товаров: 57
