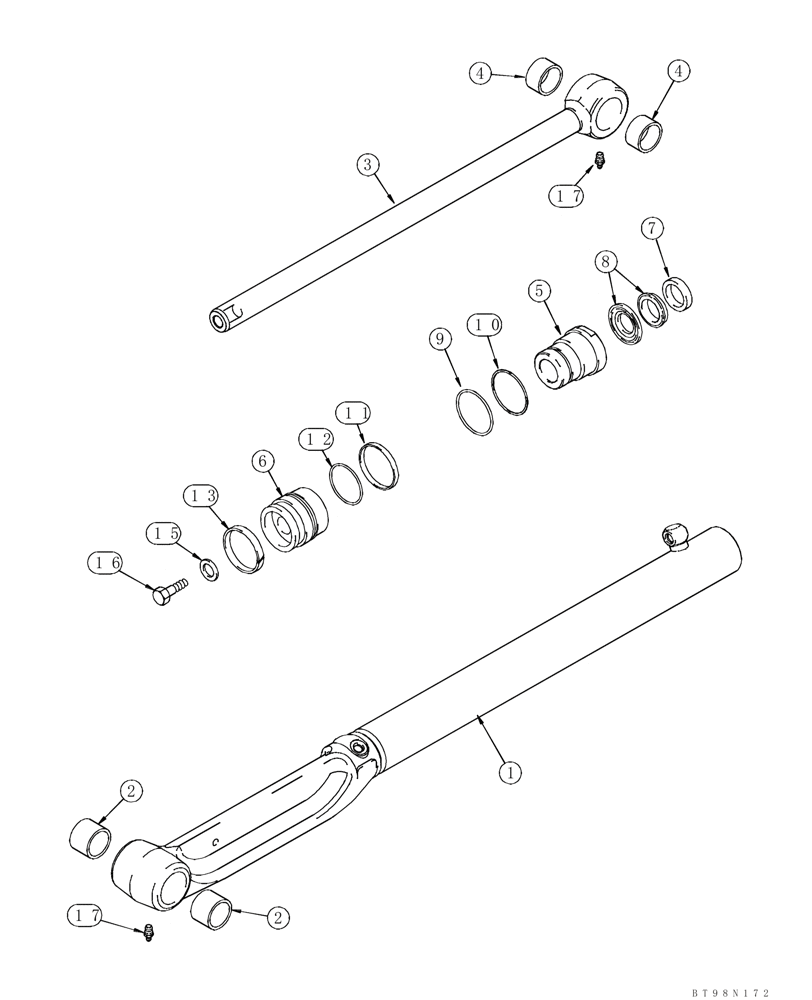

Запчасти Case IH 450 (08-12) - CYLINDER - LOADER BUCKET (08) - HYDRAULICS

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

63 ID x 590 mm strk; Loader Bucket; Incl. 1 - 17

2шт.

327411A1R

REMAN-HYD CYLINDER

450CT BSN N7M464019 (4/05 - 12/07), 450 TIER 2, P.I.N. N7M458414 & PRIOR (1/05 - 12/07)

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

327412A1

HYD CYL SLEEVE

Incl. 2

1шт.

2

190753A1

BUSHING,38.19mm ID x 47.62mm OD x 30mm L

2шт.

3

327745A1

PISTON ROD

Incl. 4

1шт.

4

226967A1

BUSHING,38.19mm ID x 47.62mm OD x 22mm L

2шт.

5

117830A2

GLAND

Packing

1шт.

6

S220090

PISTON

1шт.

128725A1

SEAL KIT

Incl. 7 - 13

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

8

1542874C1

SEAL KIT,38.1mm Rod

Not Serviced Separately; Rod and Buffer; Order 128725A1

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

11

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

Piston

1шт.

12

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Loader

1шт.

13

G100714

RING

1шт.

86982434

SPECIAL BOLT,3/4" - 16 x 2"

Incl. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
