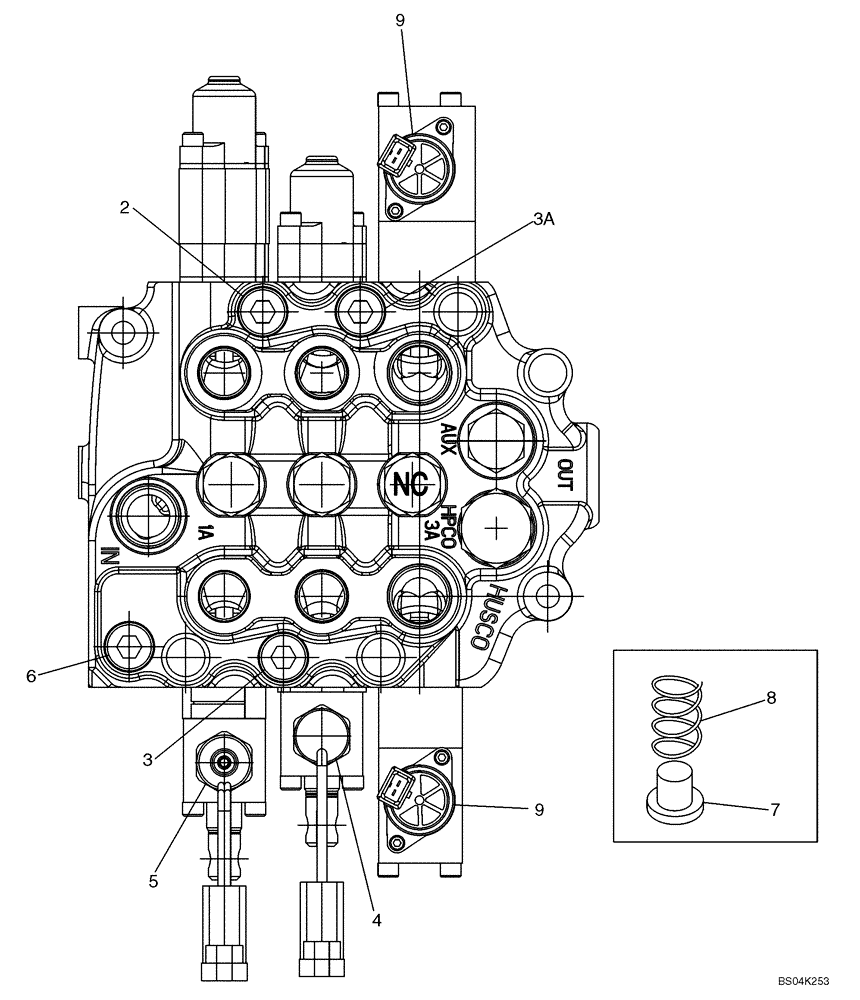

Запчасти Case IH 450 (08-08) - VALVE ASSY, CONTROL - HIGH FLOW (08) - HYDRAULICS

87446764

CONTROL VALVE

High Flow; Incl. 1 - 9

1шт.

87527175

VALVE

High Flow; Replaces 87446764; Component Parts Not Yet Available

1шт.

1

87445930

SEAL KIT

See Figure 08-10

1шт.

2

87445935

VALVE

Workport, Relief; Component Parts Not Serviced Separately

1шт.

3

87445943

VALVE

Workport, Shutoff Plug; Component Parts Not Serviced Separately

2шт.

3a

87445932

VALVE

Anti-Cavitation Cartridge; If Used; Component Parts Not Serviced Separately

1шт.

4

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Lockout; Component Parts Not Serviced Separately

1шт.

5

87445988

SOLENOID,Spool Lockout, With Manual Override

Lockout; Component Parts Not Serviced Separately

1шт.

6

87445991

VALVE

Main Relief; Component Parts Not Serviced Separately

1шт.

7

87446002

POPPET

Load Check; Component Parts Not Serviced Separately

2шт.

8

87446003

SPRING,6.7mm OD

Load Check; Component Parts Not Serviced Separately

2шт.

9

87446004

SOLENOID VALVE

High Flow; Component Parts Not Serviced Separately

2шт.
