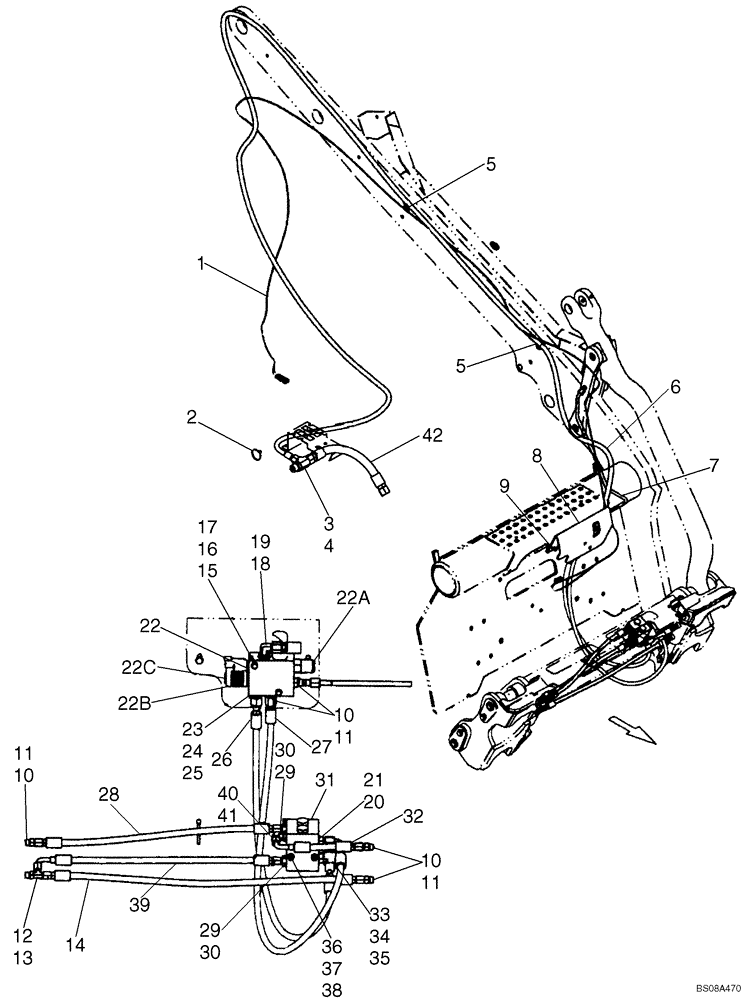

Запчасти Case IH 450 (08-07A) - HYDRAULICS - COUPLER SYSTEM, UPGRADED (08) - HYDRAULICS

87388078

CONVERSION KIT

Kit To Convert From Connection Into Bucket Circuit (Shown On 08-07) To Connection Between Gear Pump And Loader Valve; Incl. 2, 3, 5, 6

1шт.

87393401

SERVICE KIT

Hydraulic Coupler; Incl. 1 - 41 And Figure 09-05 Ref 1- 28

1шт.

1

87446983

WIRE HARNESS

Hydraulic Coupler

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

10шт.

3

87399014

ADAPTER

Incl. 4

1шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

6

87370212

HOSE,9.53mm ID x 5130mm L

Hydraulic Coupler Pressure

1шт.

7

87458917

HYD TUBE,9.5 mm OD

Hydraulic Coupler Drain

1шт.

8

87426838

BRACKET

Valve

1шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl. 11

3шт.

11

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

87437472

HOSE ASSY.

Coupler Cylinder Connection

1шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

2шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87421480

HYDRAULIC VALVE

Hydraulic Coupler; Incl. 22A - 22C

1шт.

22a

87562923

VALVE

Sequence Valve Sauer No. CP240-21-B-0-A-C-270

1шт.

22b

87433496

COIL

Sauer No. 322113

1шт.

22c

87562926

VALVE

Sequence Valve Sauer No. CP538-1-U-0-12D-DE

1шт.

23

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl. 24, 25

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

87426493

HOSE ASSY.,6.35mm ID x 830mm L

1шт.

27

87437471

HOSE ASSY.,6.35mm ID x 860mm L

1шт.

28

294884A1

HOSE ASSY.

Coupler Cylinder Base

1шт.

29

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 30

3шт.

30

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

294741A1

CHECK VALVE

1шт.

32

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

Coupler Cylinder Base

1шт.

33

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl. 34, 35

1шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

35

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

36

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

2шт.

37

87030561

NUT,M6 x 1, Cl 8

2шт.

38

86624181

WASHER,M6

4шт.

39

87437473

HOSE ASSY.

Coupler Cylinder Rod End

1шт.

40

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. 41

2шт.

41

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

87547015

HOSE

Hose, Valve Supply, 412mm (16 7/32 in.)

1шт.
