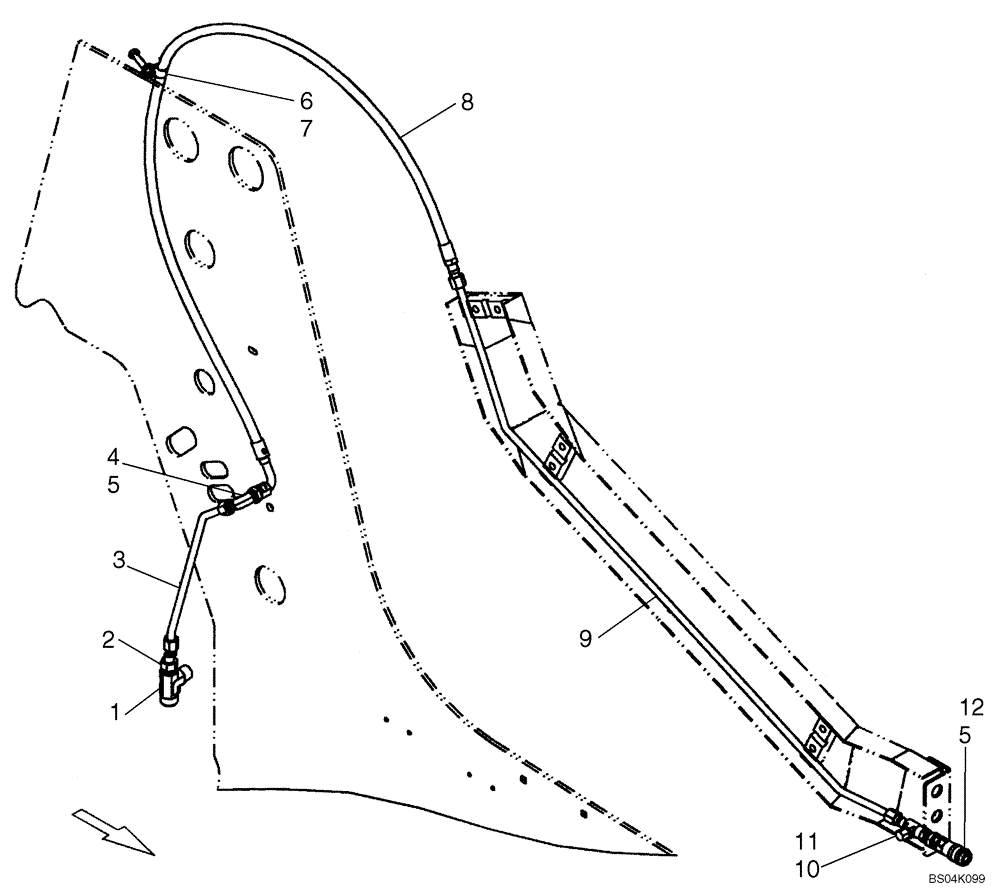

Запчасти Case IH 450 (08-05A) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

1

218-566

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.

2

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.

3

87432444

HYD TUBE,12.7 mm OD x 360.4, 210 mm L

Loader Arm Case Drain, Rear

1шт.

4

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

5

524036

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

6

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

If Used With Hose 87432975, Ref 8

1шт.

6

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

If Used With Hose 87460872, Ref 8

1шт.

7

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

8

87432975

HOSE ASSY.

1700 mm (66.9 in) Loader Arm Case Drain; If Used

1шт.

8

87460872

HOSE

1800 mm (70.8 in) Loader Arm Case Drain; If Used

1шт.

9

87449939

HYD TUBE,12.7 mm OD

Case Drain

1шт.

10

574342

CAP,9/16" - 18 JIC

1шт.

11

218-5492

HYD CONNECTOR,1/2" x 1/2" x 3/8" Run, Swivel 37 Degree Fitting

1шт.

12

87019286

COUPLING

.38 Fem

1шт.
