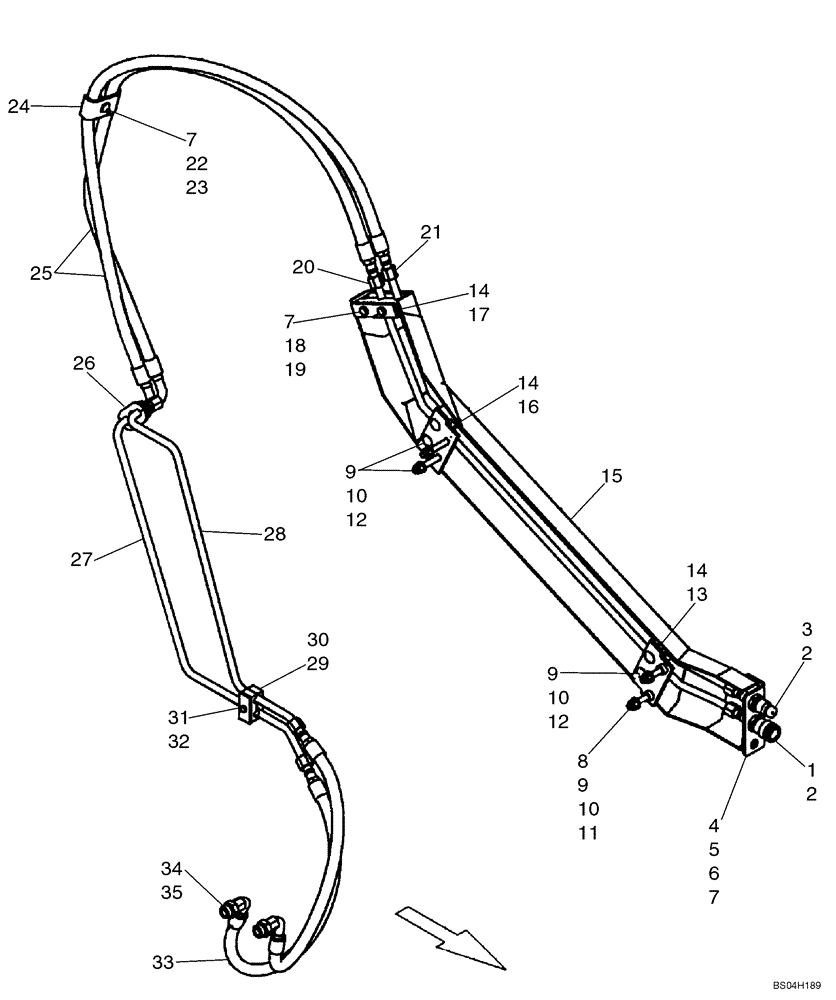

Запчасти Case IH 450 (08-05) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

1

393394A1

COUPLING, BREAK AWAY

Female

1шт.

2

595460

BHD LOCK NUT,7/8" - 14

2шт.

3

87417308

COUPLING, BREAK AWAY

1/2; Male

1шт.

4

87431612

BRACKET

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

8

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

9

412672

NUT,Hex, M12 x 1.75, Cl 10

8шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

11

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

1/2

2шт.

12

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

6шт.

13

282953A1

SUPPORT

1шт.

14

87449943

CLAMP

6шт.

15

87458932

COVER

1шт.

16

282954A1

SUPPORT

1шт.

17

256976A1

BAR

1шт.

18

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

19

86512554

NUT,M10 x 1.5, Cl 10

2шт.

20

87431350

HYD TUBE,15.9 mm OD x 1154.3, 327.7 mm L

1шт.

21

87431349

HYD TUBE,15.9 mm OD x 1113.6, 366 mm L

1шт.

22

256690A1

SPACER

1шт.

23

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

24

277730A1

CLAMP

1шт.

25

87431364

HOSE ASSY.,15.88mm ID x 1765mm L

2шт.

26

87018001

SUPPORT

5/8

2шт.

27

87431352

HYD TUBE,15.9 mm OD x 832.6, 275.9 mm L

1шт.

28

87431353

HYD TUBE,15.9 mm OD x 725.2, 183.2 mm L

1шт.

29

257857A1

CLAMP

1шт.

30

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

31

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

32

9628098

NUT,M8 x 1.25, Cl 10

1шт.

33

87459798

HOSE ASSY.

2шт.

34

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl. 24

2шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
