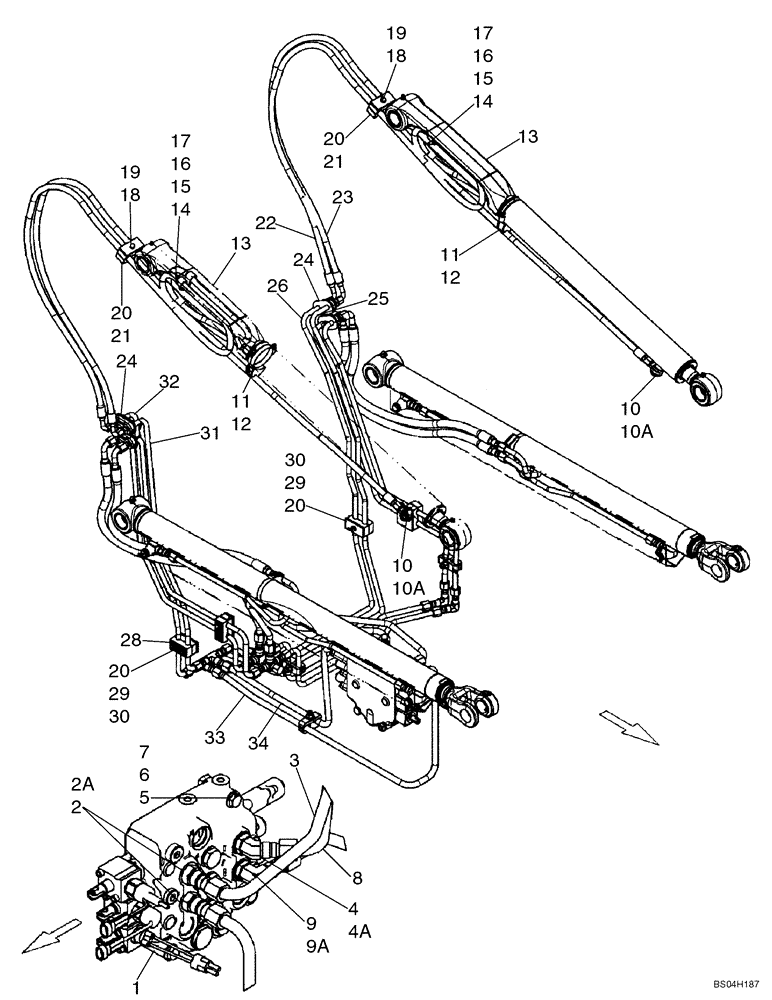

Запчасти Case IH 450 (08-02) - HYDRAULICS - LOADER BUCKET (450 WITH SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS

1

87439640

CONTROL VALVE

See Figure 08-09 - 08-10

1шт.

1

87635384R

450 SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT COMPACT TRACK LOADER - BSN N7M464019 (4/05-12/07), Reman for New PN 87439640

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

87638777

SERVICE KIT

ConversionKit, Split Pump To In-Line Pump, See Fig 08-02A Ref 33-34

1шт.

1

87527172

VALVE

Replaces 87439640; Component Parts Not Yet Available; If Used; Models With Hydraulic Attachment, See Figure 08-13

1шт.

1

87635384R

450 SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR (1/05-12/07), 450CT COMPACT TRACK LOADER - BSN N7M464019 (4/05-12/07), Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87583285

VALVE

If Used; Models With Hydraulic Attachment, See Figure 08-21 - 08-31

1шт.

1

87546974

HYDRAULIC VALVE

Models With Pilot Control; See Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35; Models With Hydraulic Attachment, See Figure 08-13B

1шт.

2

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 2A

2шт.

2a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

87431363

HYD TUBE,15.9 mm OD

Valve Lift, Lower

1шт.

4

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 4A

1шт.

4a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square, M10 x 1.5

2шт.

8

87442096

HYD TUBE,15.9 mm OD

Valve Lift, Raise

1шт.

9

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl. 9A

1шт.

9a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 10A

1шт.

10a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

D38648

BLOCK

Saddle Clamp 3/4 Tube x 4 cyl.

2шт.

12

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

13

327411A1

HYDRAULIC CYLINDER,38.1mm Rod, 590mm Stroke

Tip, 63.5 Dia Cylinder 38.1 Dia Rod; See Figure 08-12

2шт.

327411A1R

REMAN-HYD CYLINDER

450CT BSN N7M464019 (4/05 - 12/07), 450 TIER 2, P.I.N. N7M458414 & PRIOR (1/05 - 12/07)

2шт.

327411A1C

CORE-HYD CYLINDER

Return Number

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

9628098

NUT,M8 x 1.25, Cl 10

2шт.

16

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

293891A1

SPACER

1/4 x 33

2шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Clamp Top

4шт.

21

257857A1

CLAMP

2шт.

22

87431366

HOSE ASSY.,9.53mm ID x 3005mm L

Tip Cylinder Base End, 3005mm Length

2шт.

23

87431367

HOSE ASSY.,9.53mm ID x 2400mm L

Tip Cylinder Base End, 2400mm Length

2шт.

24

376523A2

SUPPORT,1/2"

4шт.

25

87431360

HYD TUBE,12.7 mm OD x 669.5, 593 mm L

Left Hand Tip, Dump

1шт.

26

87431361

HYD TUBE,12.7 mm OD x 712.2, 669.5 mm L

Left Hand Tip, Curl

1шт.

27

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 27A

1шт.

27a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

29

257919A1

CLAMP BRACKET

2шт.

30

259905A1

SPACER

1/4 x 31.25

2шт.

31

87431358

HYD TUBE,12.7 mm OD

Right Hand Tip, Dump

1шт.

32

87431359

HYD TUBE,12.7 mm OD

Right Hand Tip, Curl

1шт.

33

87432447

HYD TUBE,15.9 mm OD x 761.5, 357.3 mm L

Valve Tip, Curl

1шт.

34

87432448

HYD TUBE,15.9 mm OD x 592, 358.7 mm L

Valve Tip, Dump

1шт.
