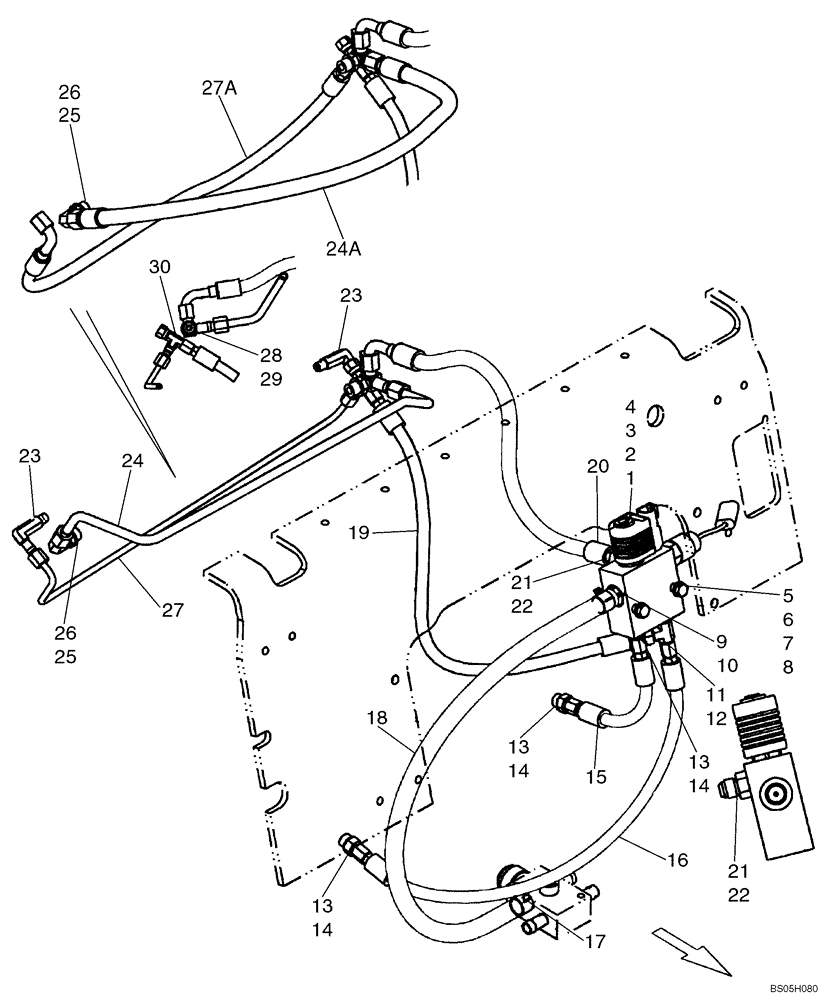

Запчасти Case IH 450 (07-01) - BRAKE SYSTEM - HYDRAULIC (450 WITH SPLIT PUMP CONFIGURATION) (07) - BRAKES

1

87021047

BRAKE VALVE

Brake Valve; Incl. 2 - 4

1шт.

87638777

SERVICE KIT

Conversion Kit, Split Pump To In-Line Pump, See Fig 07-02 Ref 7-12, 20-22

1шт.

2

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

3

87433496

COIL

1шт.

4

87424182

BRAKE VALVE

1шт.

5

9628098

NUT,M8 x 1.25, Cl 10

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 14

3шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

87458937

HOSE ASSY.

1шт.

16

87458936

HOSE ASSY.

1шт.

16

87029905

HOSE ASSY.

1шт.

17

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

18

87422423

HOSE ASSY.

Brake Valve Drain

1шт.

19

87029903

HOSE ASSY.

1шт.

20

87458959

HOSE ASSY.

1шт.

21

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

REF

INSTRUCTION

Incl. With Pump

1шт.

24

87453231

HYD TUBE,9.53 mm OD

Charge Pressure; If Used

1шт.

24a

87357677

HOSE ASSY.

Charge Pressure Hose; If Used

1шт.

25

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 26

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

87441622

HYD TUBE,6.4 mm OD x 480, 105.5 mm L

NOR Connect; If Used

1шт.

27a

87357676

HOSE ASSY.

NOR Connect Hose; If Used

1шт.

28

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 29

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.
