Запчасти Case IH 450 (06-15) - HYDROSTATICS - TWO SPEED, VALVE ASSY (06) - POWER TRAIN

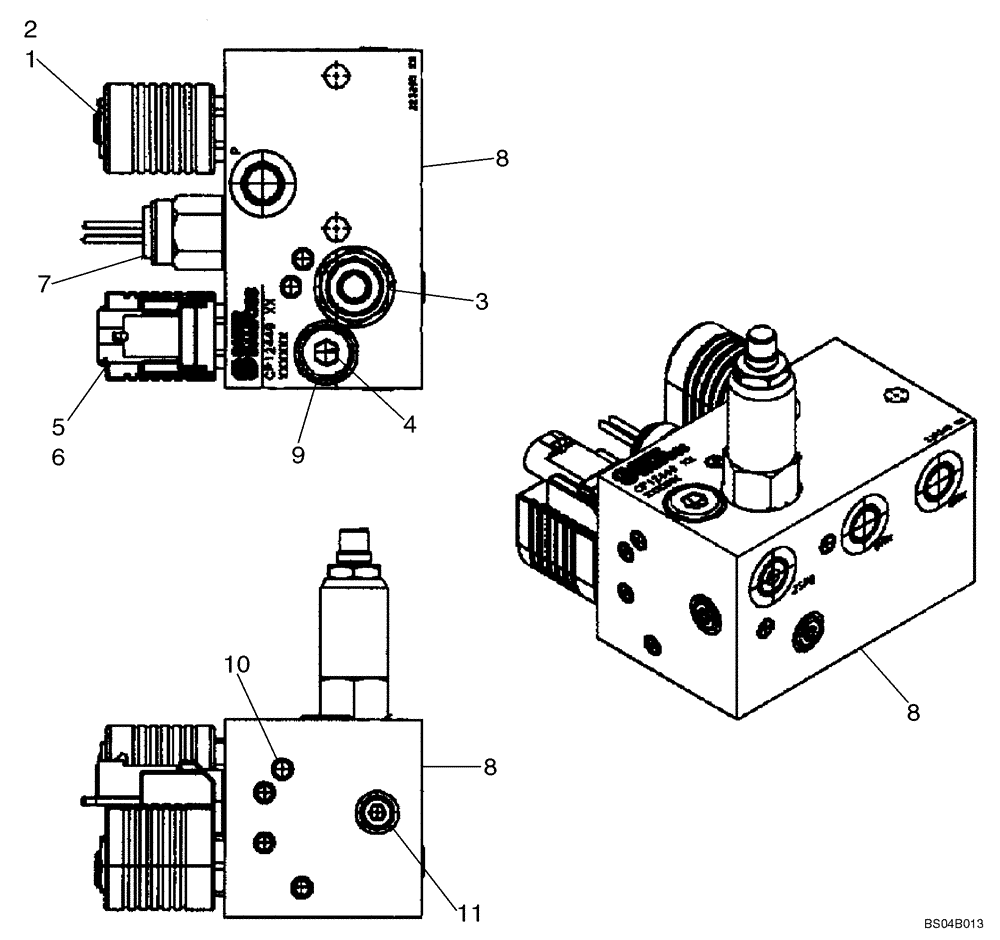

Схема запчастей Case IH 450 - (06-15) - HYDROSTATICS - TWO SPEED, VALVE ASSY (06) - POWER TRAIN
9
11
8
6
8
10
7
2
3
5
4
1
8

Артикул

Название

Примечание

Количество

87459037

HYDRAULIC VALVE

Two Speed; Incl. 1 - 11

1шт.

1

87424182

BRAKE VALVE

1шт.

2

87433496

COIL

Not Illustrated Separately

1шт.

3

87459301

VALVE

Sequence

1шт.

4

87426545

ORIFICE

M12

1шт.

5

87433495

SOLENOID VALVE

1шт.

6

87433499

COIL

Not Illustrated Separately

1шт.

7

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Plug

1шт.

10

NSS

NOT SOLD SEPARAT

Expansion Plug

11шт.

11

NSS

NOT SOLD SEPARAT

Plug

3шт.

Выбрано товаров: 12
