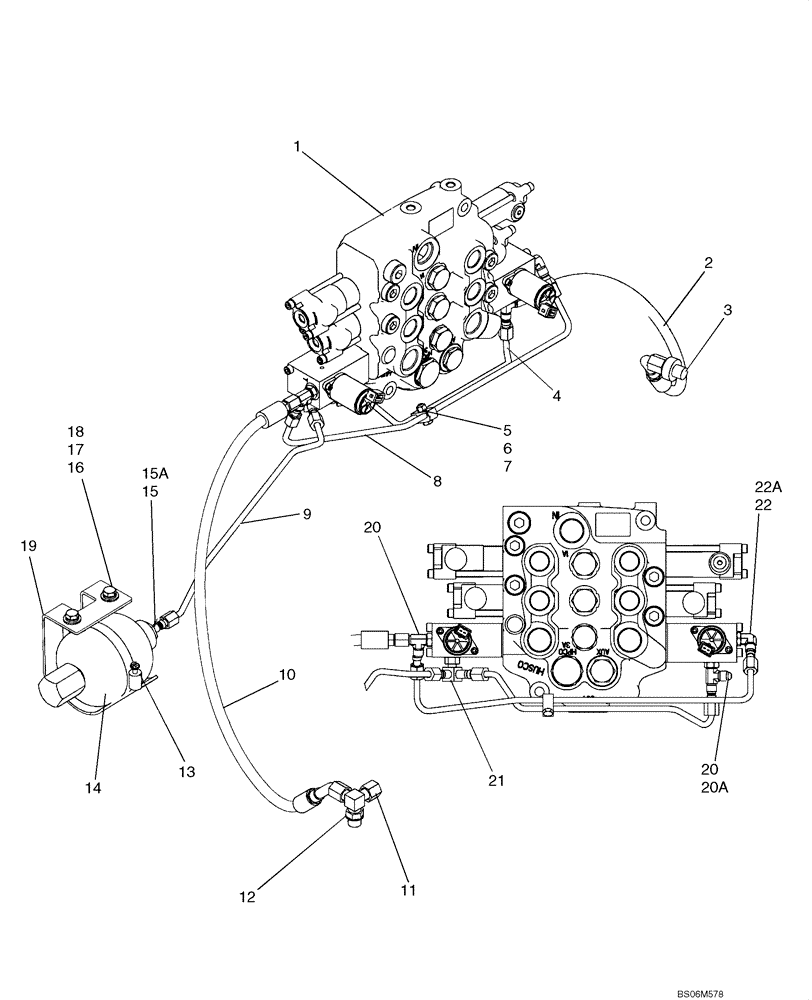

Запчасти Case IH 450 (06-14) - HYDROSTATICS - TWO SPEED, DRIVE MOTORS (450 WITH PILOT CONTROL) (06) - POWER TRAIN

REF

INSTRUCTION

450 WITH PILOT CONTROL

1шт.

1

87349721

HYDRAULIC MOTOR,660CC

See Figure 06-25 - 06-27

2шт.

1

87349721R

REMAN-HYD MOTOR

450 - SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR, 2 Speed

2шт.

1

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

3

86512555

NUT,M16 x 2, Cl 10

12шт.

4

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

5

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

6

87458948

HYD TUBE,9.53 mm OD

Tee To Left Hand Motor

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

9

9628098

NUT,M8 x 1.25, Cl 10

2шт.

10

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl. 11

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

13

87374115

HYD TUBE,7.75 mm ID x 9.53 mm OD x 242.7, 114.7 mm L

Incl. 14, 15

1шт.

14

235670

SLEEVE,37 Degree, 3/8" Tube

1шт.

15

136658

TUBE NUT,0.72" Length

1шт.

16

87547047

HOSE,12.7mm ID x 520mm L

Multi- Valve Drain

1шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 18

3шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

87546972

HYDRAULIC VALVE

Models With Two Speed Option; See Figure 06-11D

1шт.

20

87458947

HYD TUBE,9.53 mm OD

Tee To Right Hand Motor

1шт.
