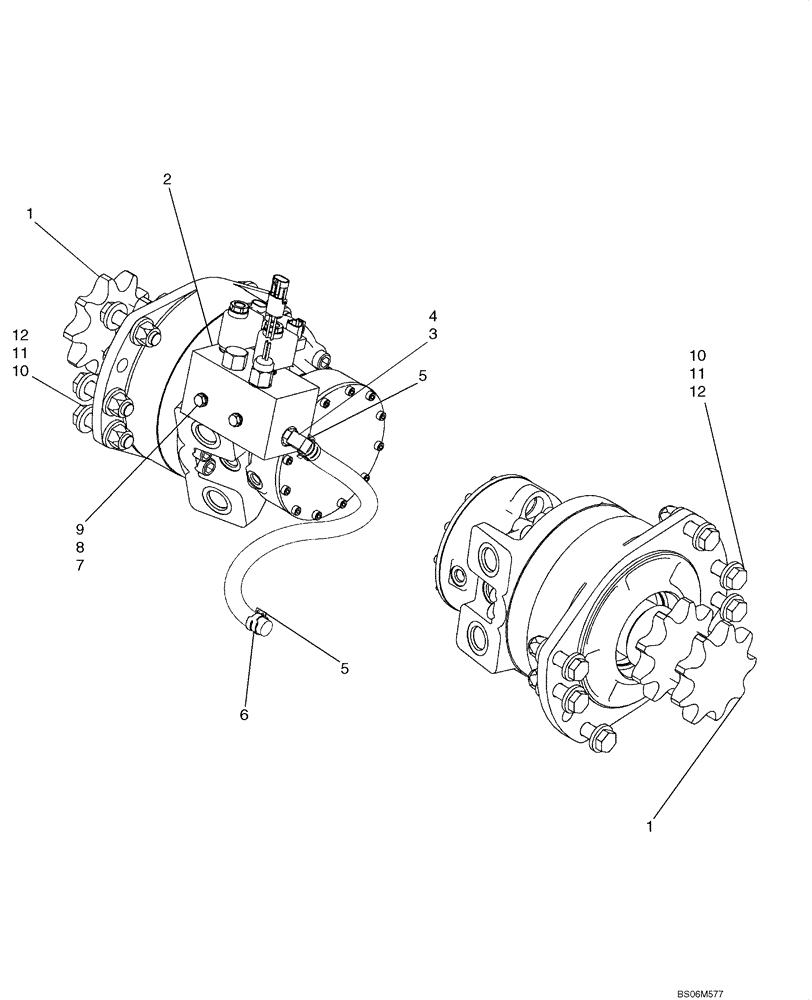

Запчасти Case IH 450 (06-13) - HYDROSTATICS - SINGLE SPEED, DRIVE MOTORS (450 WITH PILOT CONTROL) (06) - POWER TRAIN

REF

INSTRUCTION

450 WITH PILOT CONTROL

1шт.

1

87367732

HYDRAULIC MOTOR

See Figure 06-19 - 06-21

2шт.

1

87367732R

Remanufactured Hydraulic Motor

REMAN-HYD MOTOR

2шт.

1

87367732C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

2

87546971

HYDRAULIC VALVE

See Figure 06-11C

1шт.

3

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl. 4

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

6

87547047

HOSE,12.7mm ID x 520mm L

Multi-Valve Drain

1шт.

7

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

8

9628098

NUT,M8 x 1.25, Cl 10

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

11

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.
