Запчасти Case IH 450 (06-11D) - HYDROSTATICS, MULTI VALVE ASSEMBLY, TWO SPEED (06) - POWER TRAIN

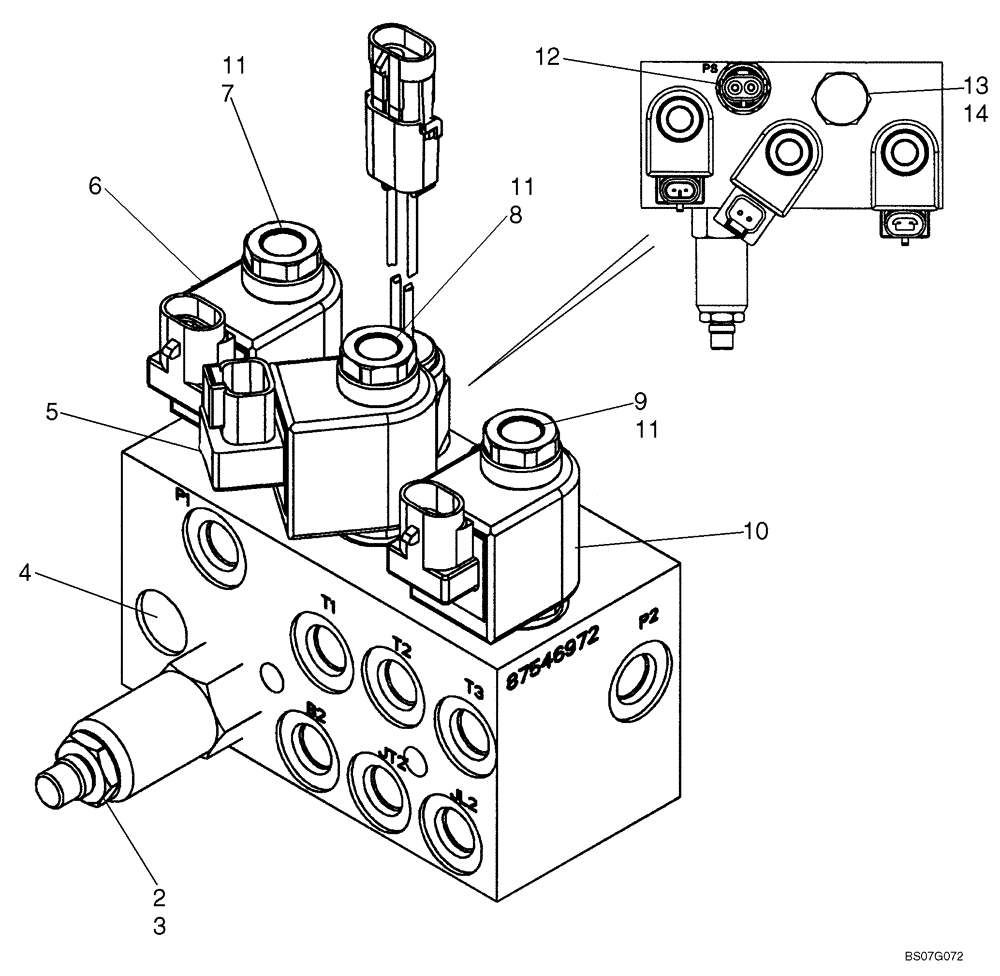

Схема запчастей Case IH 450 - (06-11D) - HYDROSTATICS, MULTI VALVE ASSEMBLY, TWO SPEED (06) - POWER TRAIN
2
13
9
11
5
3
11
12
11
6
4
14
7
8
10

Артикул

Название

Примечание

Количество

1

87546972

HYDRAULIC VALVE

Pilot Control, Brake; Incl. 2 - 13

1шт.

2

87459301

VALVE

Sequence

1шт.

3

87614014

SEAL KIT

Solenoid Valve

1шт.

4

87426545

ORIFICE

M12

1шт.

5

87588596

SOLENOID

Coil

1шт.

6

87588597

SOLENOID

Coil

1шт.

7

87588585

SOLENOID VALVE

1шт.

8

87588579

SOLENOID VALVE

1шт.

9

87614011

SOLENOID VALVE

1шт.

10

87614012

COIL

1шт.

11

87614013

SEAL KIT

Solenoid Valve

1шт.

12

87458061

PRESSURE SWITCH

Charge Pressure; Incl. O-Ring Which Is Not Serviced Separately

1шт.

13

87614009

VALVE

Cartridge Valve

1шт.

14

87614015

SEAL KIT

Cartridge Valve

1шт.

Выбрано товаров: 14
