Запчасти Case IH 450 (06-07B) - HYDROSTATICS - TWO SPEED (450 WITH IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN

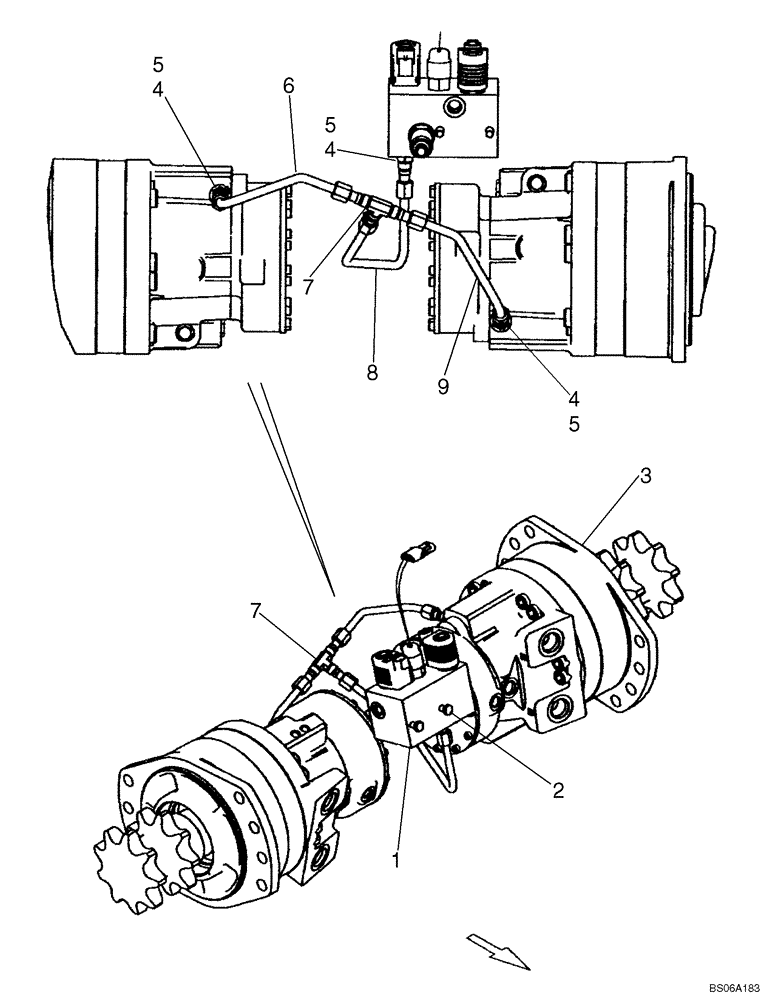

Схема запчастей Case IH 450 - (06-07B) - HYDROSTATICS - TWO SPEED (450 WITH IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN
6
3
1
5
7
7
9
4
5
4
4
8
2
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

450 WITH IN-LINE PUMP CONFIGURATION

1шт.

87638777

SERVICE KIT

Conversion Kit, Split Pump to In-Line Pump, Incl Ref 8

1шт.

1

87459037

HYDRAULIC VALVE

Two Speed; See Figure 06-07

1шт.

2

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

3

87349721

HYDRAULIC MOTOR,660CC

Two Speed; See Figure 06-42 - 06-44

2шт.

3

87349721R

REMAN-HYD MOTOR

450 - SKID STEER, TIER 2, P.I.N. N7M458414 & PRIOR, 2 Speed

2шт.

3

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 5

3шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87458948

HYD TUBE,9.53 mm OD

Tee To Left Hand Motor

1шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

87374115

HYD TUBE,7.75 mm ID x 9.53 mm OD x 242.7, 114.7 mm L

Speed Valve To Tee

1шт.

9

87458947

HYD TUBE,9.53 mm OD

Tee To Right Hand Motor

1шт.

Выбрано товаров: 13
