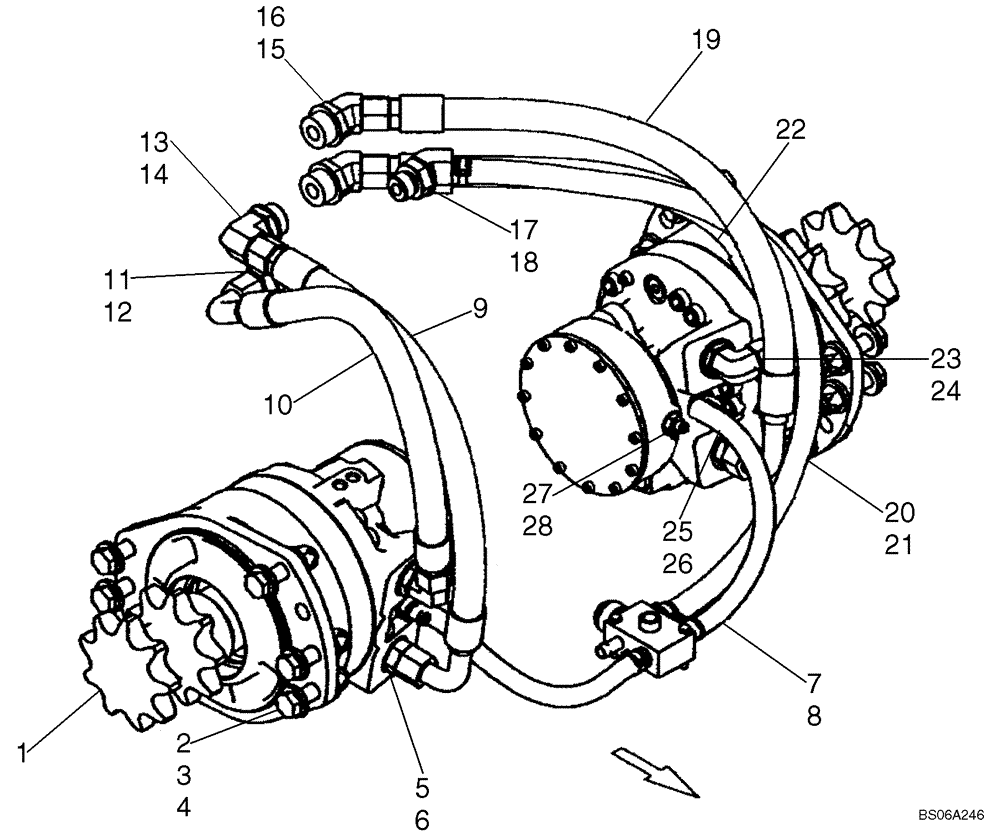

Запчасти Case IH 450 (06-07A) - HYDROSTATICS - DRIVE MOTORS (450 WITH IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
450 WITH IN-LINE PUMP CONFIGURATION
1шт.
1
87367732
HYDRAULIC MOTOR
Motor; See Figure 06-19 - 06-21
2шт.
1
87367732R
Remanufactured Hydraulic Motor
REMAN-HYD MOTOR
2шт.
1
87367732C
Return Number
CORE-MOTOR HYDRAULIC
2шт.
2
9847468
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
12шт.
3
86512555
NUT,M16 x 2, Cl 10
12шт.
4
86625258
WASHER,17.5mm ID x 34mm OD x 5mm Thk
24шт.
6
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
7
87029907
HOSE ASSY.
2шт.
8
87443510
HOSE CLAMP,18.4mm Static ID x 15mm W
4шт.
9
87364349
HOSE ASSY.
Loop
1шт.
10
87364401
HOSE ASSY.
Loop
1шт.
11
233705
HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC
Incl. 12
1шт.
12
167268
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
13
570024
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring
Incl. 14
1шт.
14
305412
O-RING
1шт.
15
22907
ELBOW,0.50" ID x 175.00", SAE J517, SAE J516, SAE J846, SAE J1273
Incl. 16
2шт.
16
167268
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
17
87021779
FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded
Incl. 18
1шт.
18
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
19
87355946
HOSE ASSY.
Loop
1шт.
20
87443511
CLAMP,22mm - 26mm, CTB-24, Style C
24 mm
2шт.
21
87357018
HOSE ASSY.
Loop
1шт.
22
87364348
HOSE ASSY.,19.05mm ID x 575mm L, SAE 100R13
Loop
1шт.
23
322894
90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB
Incl. 24
3шт.
24
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
25
87010108
FITTING,1/2" Hose Bead x 3/4" - 16 ORB
Incl. 26
2шт.
26
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
27
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
Incl. 28
2шт.
Выбрано товаров: 31
