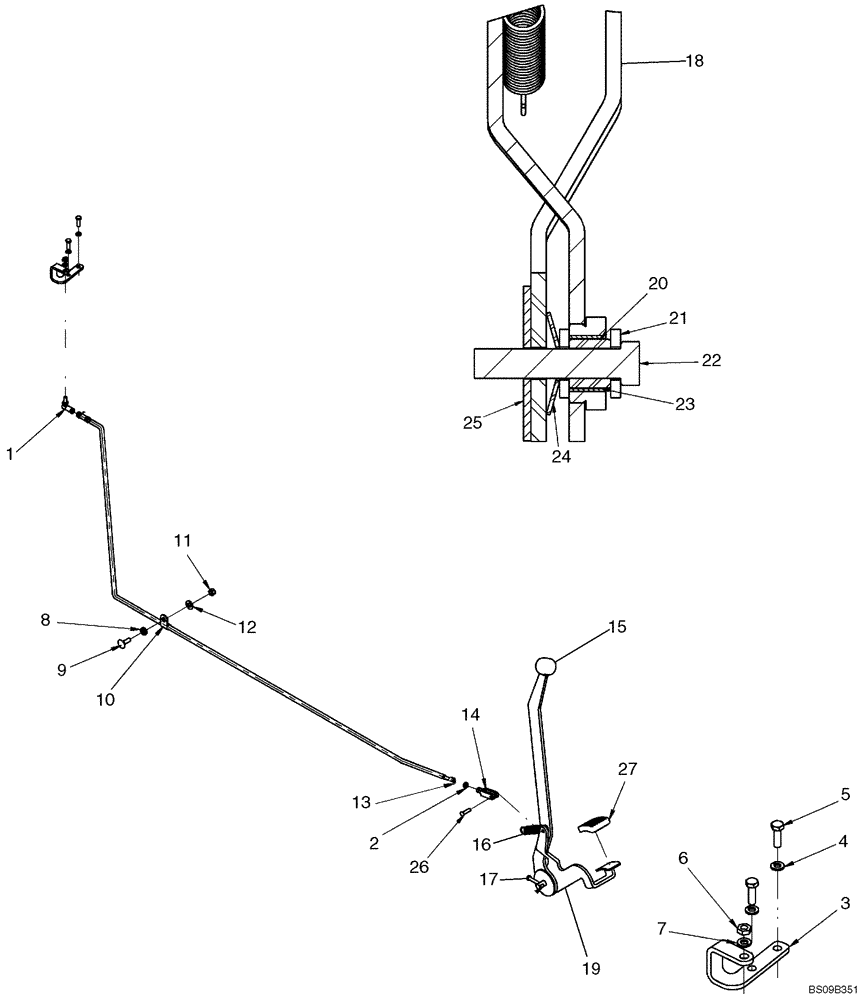

Запчасти Case IH 445 (03-02) - CONTROLS - THROTTLE (03) - FUEL SYSTEM

1

H169920

BALL JOINT

1шт.

2

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

3

87667339

BRACKET

Throttle Bracket

1шт.

4

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

6

88098

JAM NUT,Jam, 1/4"-28, G2

1шт.

7

80682

LOCK WASHER,1/4"

1шт.

8

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

9

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

10

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

9628098

NUT,M8 x 1.25, Cl 10

1шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

13

87666100

ROD

Throttle Rod, 1343mm (52 7/8 in.) Length; No Longer Used, Order 87734197

1шт.

13

87734197

ROD

Throttle Rod, 1355mm (53 3/8 in.)

1шт.

14

87622861

CLEVIS PIN

1шт.

REF

INSTRUCTION

Throttle Control; Incl 15-25

1шт.

15

A177436

KNOB

1шт.

16

D124939

SPRING

1шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

18

186904A1

CONTROL LEVER

1шт.

19

87743040

BRACKET

Foot Throttle; Replaces 87712224

1шт.

20

187035A2

SLEEVE

1шт.

21

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

22

87612749

BOLT,Hex, M12 x 60mm, Cl 10.9

1шт.

23

186905A1

BUSHING

1шт.

24

R14771

WASHER

1шт.

25

1342374C1

DISC

1шт.

26

D23693

AXLE PIN

If Used

1шт.

26

87482654

CLEVIS PIN

1шт.

27

323657A1

PAD

Pad, Foot Throttle

1шт.
