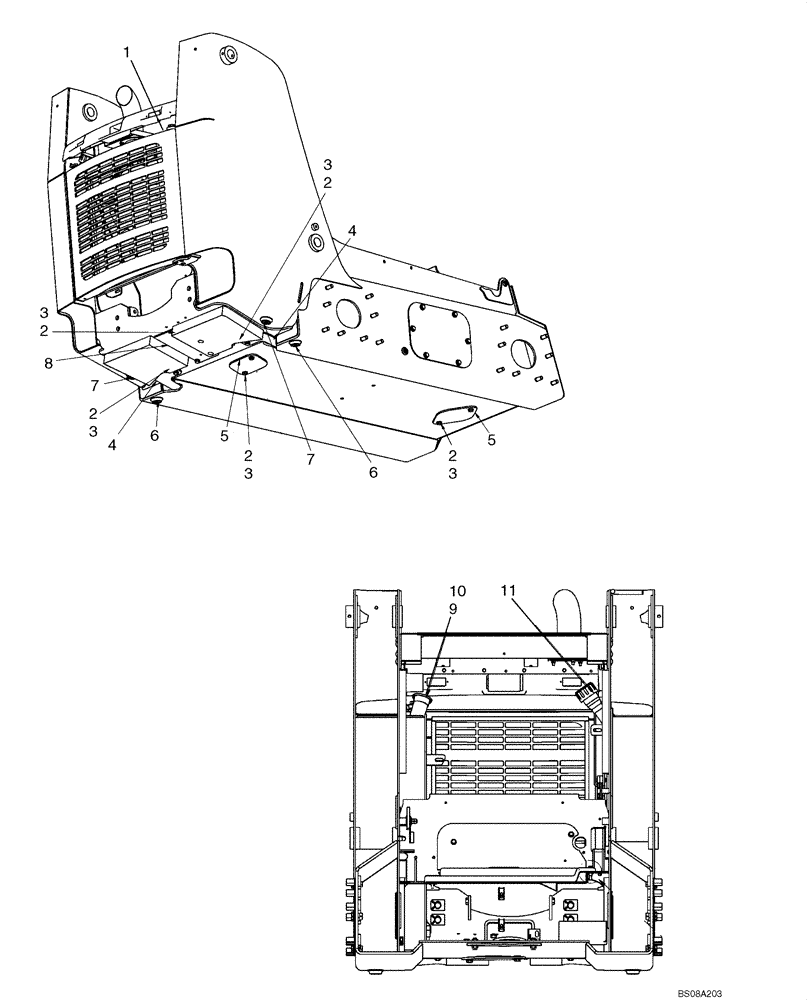

1
REF
INSTRUCTION
Rear Door, Standard; See Fig 09-56
1шт.
1
REF
INSTRUCTION
Rear Door, Louvered (Europe); See Fig 09-57
1шт.
2
43260
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
10шт.
3
86625255
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
17шт.
4
189422A1
COVER
Rear Chain Tank Cover
2шт.
5
247609A1
COVER
2шт.
6
86625135
PLUG,1" - 11-1/2 NPT
2шт.
7
87432221
PLUG
Magnetic Plug
2шт.
8
87666086
PLATE
Cover
1шт.
9
H436887
CAP
Fuel Cap, Non Locking
1шт.
10
108925A1
FILLER CAP
Fuel Cap, Locking; Incl 2 Keys
1шт.
11
257448A1
CAP
Hydraulic Fill Cap
1шт.
