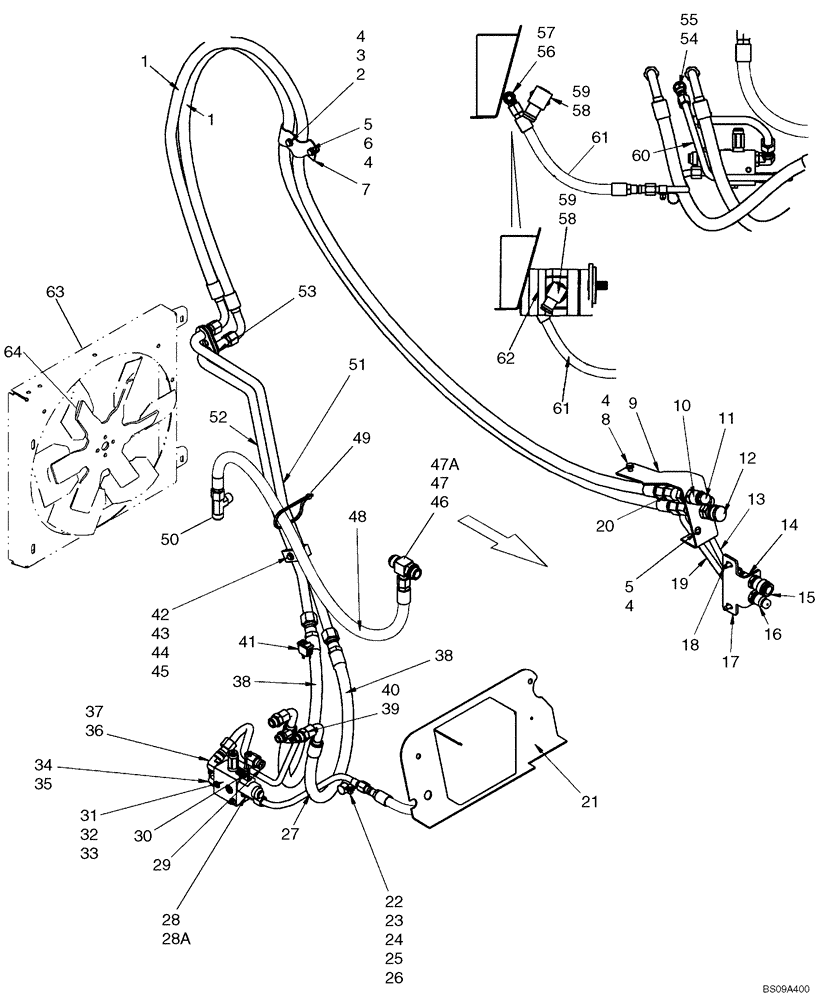

Запчасти Case IH 445 (08-14) - HYDRAULICS - HIGH FLOW (08) - HYDRAULICS

87711353

SERVICE KIT

Kit, High Flow; Incl 1 - 64, And Fig 02-01 Refs 22, 28; Bi- Directional Gear

1шт.

1

87705858

HOSE

Hose, High Flow, 3200mm (126 in.)

2шт.

2

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

3

371108R1

SPACER,3/8" Pipe x .844"

1шт.

4

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

86512554

NUT,M10 x 1.5, Cl 10

1шт.

7

87719923

CLAMP

Clamp

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

87434094

BRACKET

Coupler Bracket

1шт.

10

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

11

87022672

QUICK MALE COUPLING

5/8 Male Coupler

1шт.

12

87022671

COUPLING, QUICK, FEM

5/8 Female Coupler

1шт.

13

87434092

HYD TUBE,15.88 mm OD x 182.7, 177.2 mm L

1шт.

14

595460

BHD LOCK NUT,7/8" - 14

2шт.

15

393394A1

COUPLING, BREAK AWAY

1/2 Female Quick Disconnect; If Used

1шт.

15

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 Female Quick Disconnect

1шт.

16

87417308

COUPLING, BREAK AWAY

1/2 Male Quick Disconnect; If Used

1шт.

16

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1/2 Male Quick Disconnect

1шт.

17

87426968

BRACKET

1шт.

18

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

19

87434093

HYD TUBE,15.88 mm OD x 292.1, 228.3 mm L

1шт.

20

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

2шт.

21

87662609

ANGLE

Heel Plate; If Used

1шт.

22

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

1шт.

23

412250

NUT,M8 x 1.25, Cl 8

1шт.

24

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

26

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

87552530

HYD TUBE,11.7 mm ID x 15.9 mm OD

Tube, High Flow Supply

1шт.

28

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 28A

1шт.

28a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

87520123

HYD TUBE,16.57 mm ID x 19.05 mm OD x 193.8, 167.5 mm L

Tube, High Flow Return

1шт.

30

87012669

VALVE

Combination Valve; See Fig 08-15

1шт.

31

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

32

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

33

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

34

86512996

ELBOW,45 Degree, 7/8"-14 x 3/4"-16, O-Ring

Incl 35

1шт.

35

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 37

1шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

87019071

HYDRAULIC HOSE

Hose, 878mm (34 9/16 in.)

2шт.

39

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 40

2шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

41

87414769

SWITCH

Rocker Switch, High-Flow

1шт.

42

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

43

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

44

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

45

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

1шт.

46

254524A1

TEE

Tee, Special With Check Valve; Incl 47-47A

1шт.

47

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

47a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

48

87746699

HOSE

Hose, Oil Cooler Bypass, 1035mm (40 3/4 in.)

1шт.

49

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

50

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.

51

87705797

TUBE,25.4 mm OD x 734.5, 548 mm L

Tube, High Flow

1шт.

52

87705798

TUBE,25.4 mm OD x 605.2, 527.7 mm L

Tube, High Flow

1шт.

53

87017999

SUPPORT

Hydraulic Tube Support

2шт.

54

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 55

1шт.

55

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

56

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 57

1шт.

57

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

58

86705581

STEM

Stem 90 Bead Hose 1 1/4ID X 1 5/8 - 12; Incl 59

1шт.

59

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

60

87436469

HYD TUBE,15.88 mm OD

Tube, High Flow Supply

1шт.

61

87598098

HOSE

Hose, High Flow Supply, 415mm (16 5/16 in.)

1шт.

62

87527604

PUMP

DB Gear 2.2 / 1.25CID

1шт.

63

87720222

SHROUD

1шт.

64

87680032

FAN,6 Blades, 517.9mm OD

518mm; 24 Degree

1шт.
