Запчасти Case IH 445 (08-07) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

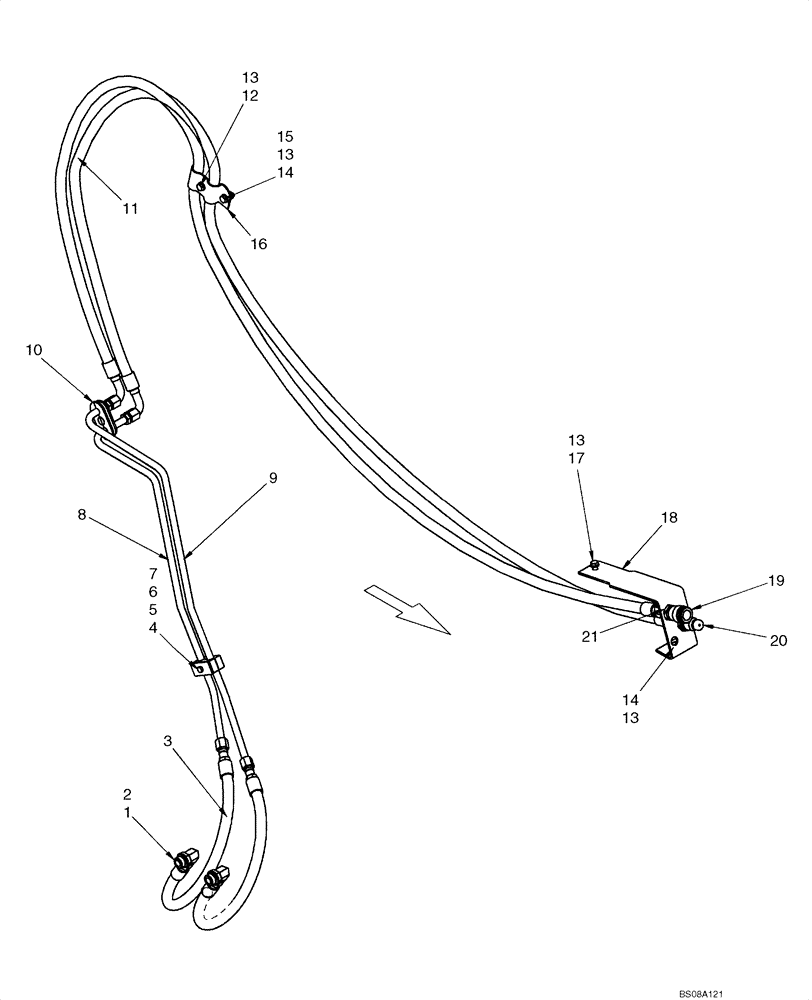

Схема запчастей Case IH 445 - (08-07) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS
17
15
20
13
13
16
8
13
7
6
21
9
2
13
1
18
14
5
10
14
3
19
12
4
11

Артикул

Название

Примечание

Количество

1

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

87404895

HOSE ASSY.

900mm (35 7/16 in.)

2шт.

4

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

5

259905A1

SPACER

1шт.

6

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

7

257857A1

CLAMP

1шт.

8

87739930

TUBE,15.875 mm OD x 605.2, 527.7 mm L

Tube, Auxiliary

1шт.

9

87739929

TUBE

Tube, Auxiliary

1шт.

10

87018001

SUPPORT

Hydraulic Tube Support

2шт.

11

87491437

HOSE

Hose, Auxiliary, 3300mm (130 in.); Replaces 87722898; If Used

2шт.

11

87700746

HOSE

Hose, Auxiliary, 3435mm (135.24in)

2шт.

12

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

1шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

86512554

NUT,M10 x 1.5, Cl 10

1шт.

16

87722656

CLAMP

Clamp

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

18

87434104

BRACKET

1шт.

19

393394A1

COUPLING, BREAK AWAY

1/2 in. Female Coupler, Quick Disconnect

1шт.

20

87417308

COUPLING, BREAK AWAY

1/2 in. Male Coupler, Quick Disconnect

1шт.

Выбрано товаров: 21
