Запчасти Case IH 445 (08-04) - CYLINDER - LOADER BUCKET (08) - HYDRAULICS

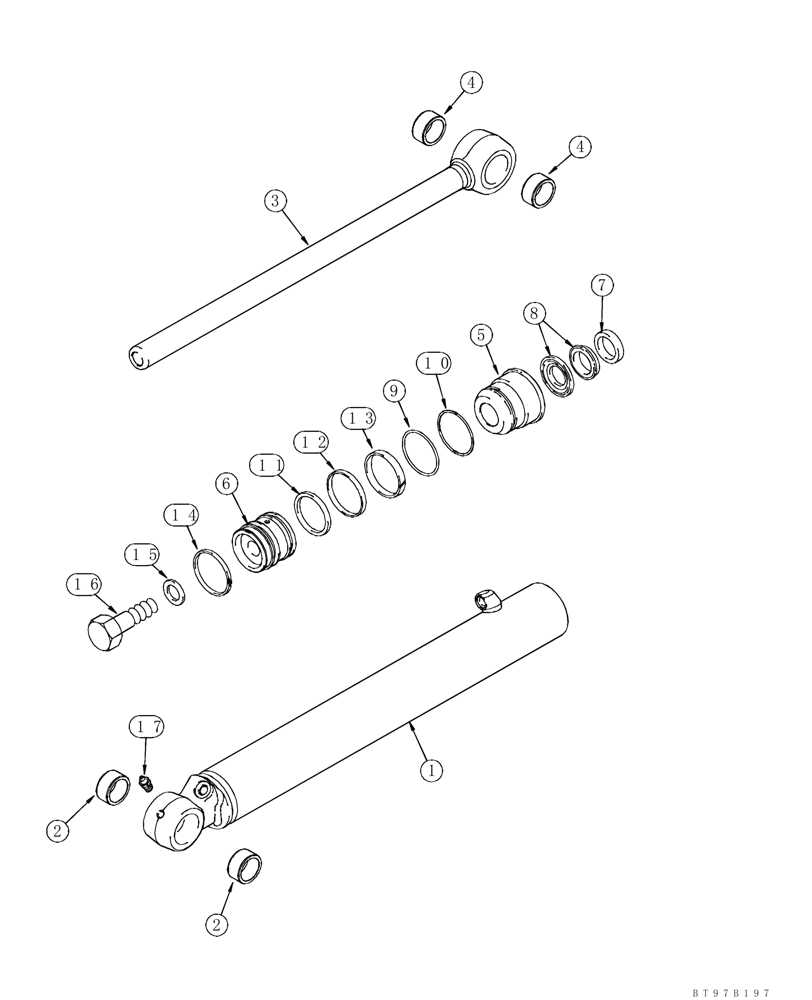

Схема запчастей Case IH 445 - (08-04) - CYLINDER - LOADER BUCKET (08) - HYDRAULICS
17
3
2
2
9
1
4
8
10
14
7
13
bt97b197
4
5
11
12
16
15
6

Артикул

Название

Примечание

Количество

1

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

70 ID x 525 mm strk; Loader Bucket; Incl. 1 - 17

2шт.

1

258426A3R

445 ASN N7M454787, 445CT ASN N8M458846, Both w/Tier 3 Engine

REMAN-HYD CYLINDER

2шт.

1

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

1

258427A1

HYD CYL SLEEVE

Incl. 2

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

3

258791A1

PISTON ROD

35 mm OD; Incl. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

258434A2

CYLINDER END CAP

Packing

1шт.

6

258432A4

JACK PISTON

1шт.

275503A2

SEAL KIT

Incl. 7 - 14

1шт.

7

226847A1

WIPER SEAL

1шт.

8

279532A1

SEAL

Not Serviced Separately; Rod And Buffer Seal; Order 275503A2

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

11

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

Piston

1шт.

12

G104439

RING

Loader

1шт.

13

G105187

RING

1шт.

14

258546A2

RING

Cast Iron

1шт.

15

275321A1

WASHER

1шт.

16

328-1440

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8

Replaces 28-1240

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

Выбрано товаров: 21
