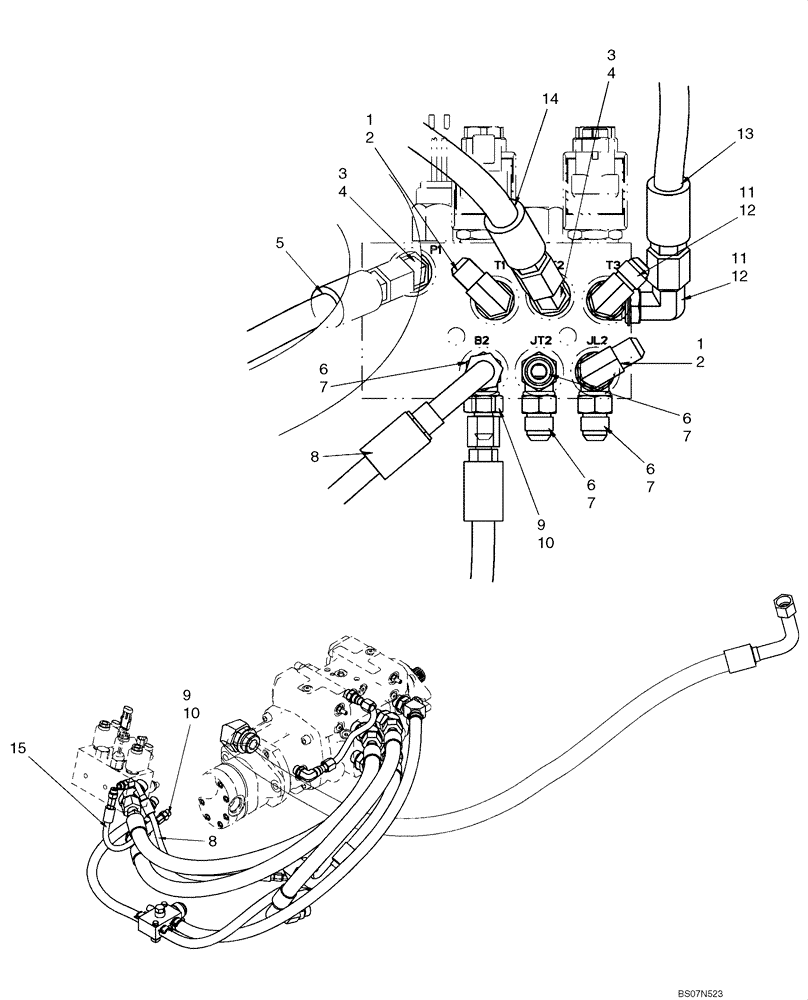

Запчасти Case IH 445 (06-13) - HYDROSTATICS - MULTI VALVE PLUMBING (445 WITH PILOT CONTROL) (06) - POWER TRAIN

1

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 2

3шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

3

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 4

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

87547032

HOSE,9.65 mm ID x 3050.00 mm

Hose, Charge Pressure, 467mm (18 3/8 in.)

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 7

4-5шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4-5шт.

8

87547026

HOSE

Hose, Supply Or Brake, 465mm (18 5/16 in.)

1шт.

9

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 10

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 12

2шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

13

87597574

HOSE

Hose, DA Pressure, 775mm (30 1/2 in.)

1шт.

14

87597580

HOSE

Hose, Dump Valve Drain, 680mm (26 3/4 in.)

1шт.

15

87724991

HOSE

Hose, Brake RH, 270mm (10 5/8 in.)

1шт.
