(04-22) - MOUNTING - LAMP ASSY, COMBINATION, REAR

Запчасти Case IH 445 (04-22) - MOUNTING - LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS

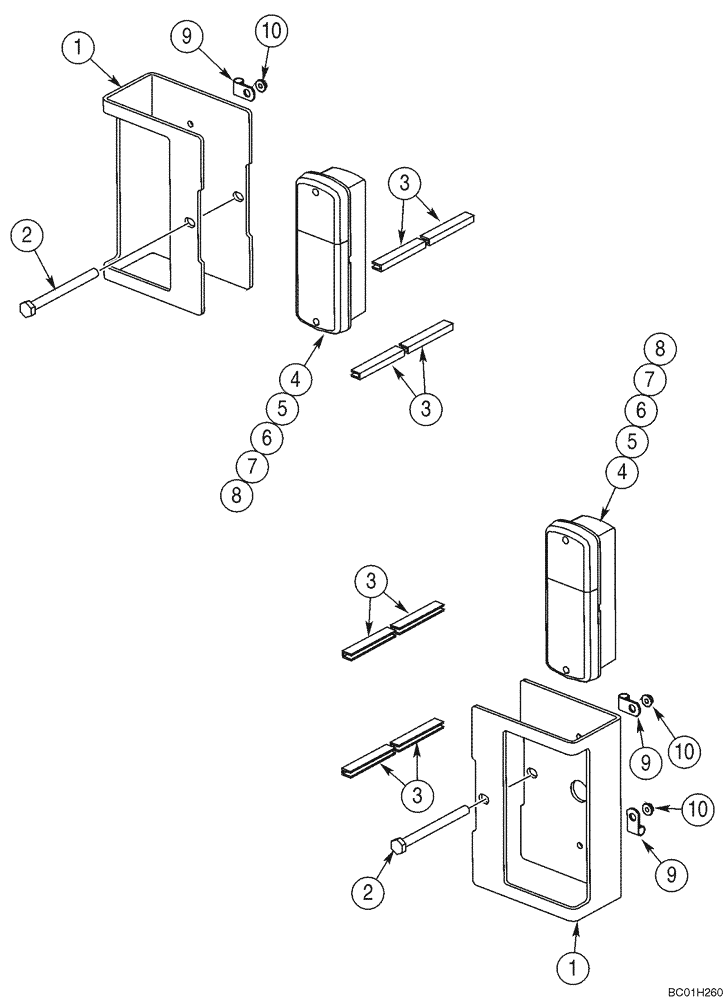

Схема запчастей Case IH 445 - (04-22) - MOUNTING - LAMP ASSY, COMBINATION, REAR (04) - ELECTRICAL SYSTEMS
3
1
3
10
9
3
10
3
4
4
7
9
8
1
2
6
5
10
2
9
8
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

367573A1

SUPPORT

2шт.

2

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

3

D55218

SEAL, GLASS,76mm L

76 mm (3 in); Cut From F42827

10шт.

4

177239A2

LAMP, TAIL

LIGHT, TAIL Combination; Incl. 5 - 8

2шт.

5

187140A1

LENS

1шт.

6

1094366R1

BULB

12V, 21W; Turn Signal

1шт.

7

3131234R1

BULB,P25-2, 12V, 5W

Stop and Tail

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Junct.

1шт.

9

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

10

86511444

FLANGE NUT,Hex, M6 x 1

4шт.
