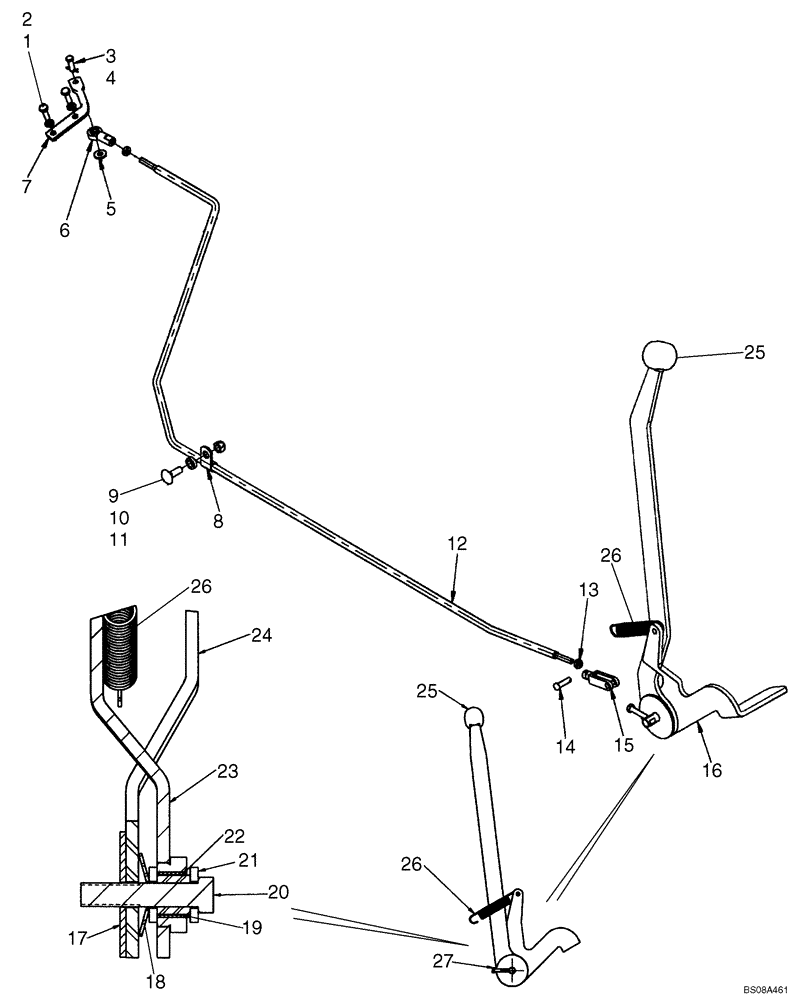

Запчасти Case IH 445 (03-02A) - CONTROLS - THROTTLE; IF USED (03) - FUEL SYSTEM

87648048

SERVICE KIT

Kit, Throttle Kit; Incl 1 - 29

1шт.

1

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

2

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

3

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

4

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

6

A146456

BALL

Ball Joint, Rod End

1шт.

7

87608065

ROD

1шт.

8

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

10

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

11

9628098

NUT,M8 x 1.25, Cl 10

1шт.

12

87602733

ROD

Throttle Control Rod

1шт.

13

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

14

D23693

AXLE PIN

1шт.

15

87622861

CLEVIS PIN

1шт.

16

87610132

THROTTLE CONTROL

Incl 17 - 27

1шт.

17

1342374C1

DISC

Friction Disc

1шт.

18

R14771

WASHER

1шт.

19

186905A1

BUSHING

1шт.

20

87612749

BOLT,Hex, M12 x 60mm, Cl 10.9

Bolt, M12 X 60

1шт.

21

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

22

187035A2

SLEEVE

Throttle Pivot Sleeve

1шт.

23

87601406

THROTTLE

Foot Throttle Control; No Longer Used, Order 87743040

1шт.

23

87743040

BRACKET

Foot Throttle

1шт.

24

186904A1

CONTROL LEVER

Throttle Handle

1шт.

25

A177436

KNOB

Control Lever Knob

1шт.

26

D124939

SPRING

1шт.

27

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

28

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

Not Illustrated; Included In Throttle Kit

1шт.

29

87612366

HEATER TUBE

Heater Tube; Not Illustrated; Included In Throttle Kit

1шт.
