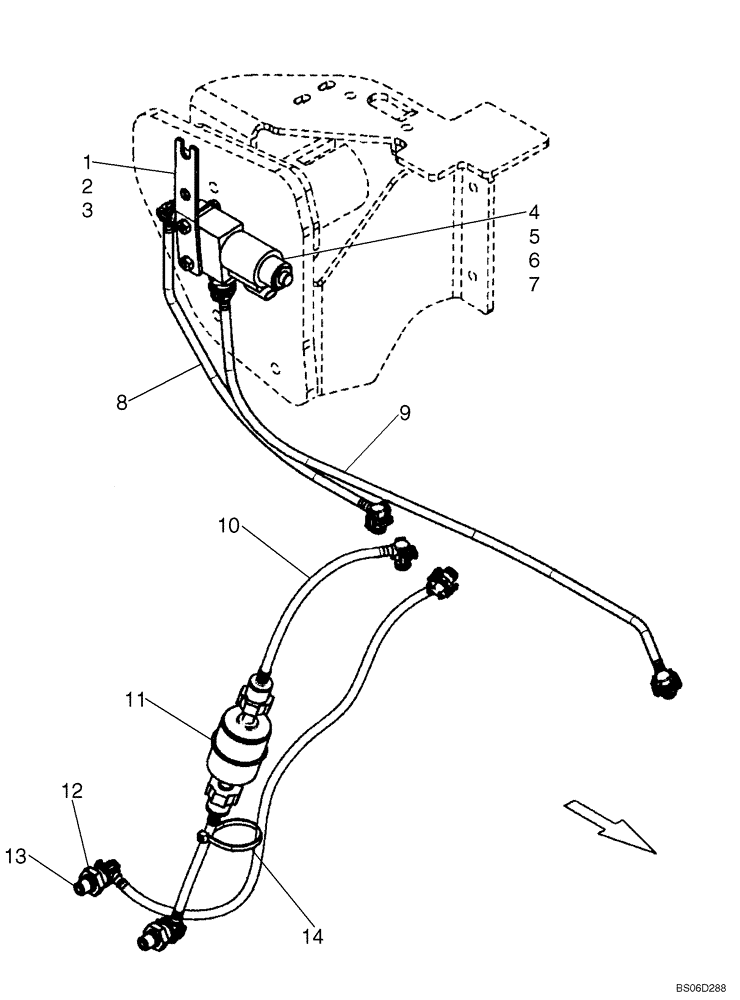

Запчасти Case IH 445 (03-01C) - FUEL LINES - FUEL SHUT-OFF VALVE, IF USED (SEE REF 1) (03) - FUEL SYSTEM

87523556

REPAIR KIT

Fuel Shut-Off Kit; Incl. 1-7, 8, 9, 15 And Instructions

1шт.

1

87532547

PLATE

Incl. 2

1шт.

2

86639234

NUT,Weld, M6

2шт.

3

86632602

LOCK WASHER,Ext Tooth, M10

1шт.

4

87518926

SHUT-OFF VALVE

Fuel Shut-Off Valve

1шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

6

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

7

86601756

HYD CONNECTOR

246 NG8 To 1/4 NPTF

2шт.

8

87523742

FUEL HOSE,7.00 mm ID x 495.0 mm

1шт.

9

87523741

TUBE,7.00 mm ID x 700.0 mm

1шт.

10

87018091

TUBE

2шт.

11

87019604

FUEL FILTER

1шт.

11

87548612

FUEL FILTER

Inline; Replaces 87019604

1шт.

12

87018092

FUEL TUBE,8mm ID x 675mm L

1шт.

13

87431323

ADAPTER

2шт.

14

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

15

87523804

WIRE HARNESS

Fuel Shut-Off Kit; Not Illustrated

1шт.
