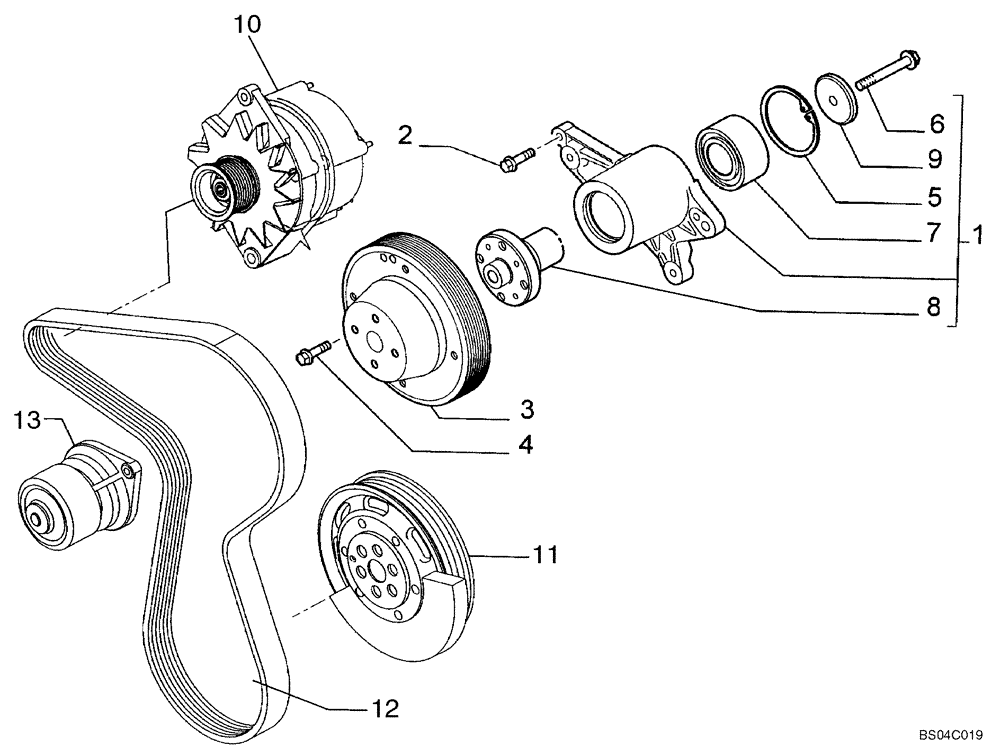

Запчасти Case IH 445 (02-35) - FAN DRIVE (02) - ENGINE

1

2853008

SUPPORT

Fan Support Assy; Incl 5 - 9

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

2

4895608

SCREW

1шт.

3

2853010

PULLEY,158mm OD

1шт.

4

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

5

2852171

SNAP RING

1шт.

6

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

10

87038475

ALTERNATOR

12V, 95 Amp; Component Parts Not Available At Time Of Printing

1шт.

10

87038475R

REMAN-ALTERNATOR

Reman For New PN 87038475

1шт.

10

87038475C

CORE-ALTERNATOR

Return Number

1шт.

10

84230294R

REMAN-ALTERNATOR

Reman For New PN 87038475

1шт.

10

84230294C

Return Number

CORE-ALTERNATOR

1шт.

11

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

84230294R

REMAN-ALTERNATOR

445 BSN N7M454787, 445CT BSN N8M458846, N.A. Only

1шт.

84230294C

Return Number, For N.A. Only

CORE-ALTERNATOR

1шт.

12

REF

INSTRUCTION

FAN BELT; See Figure 02-02

1шт.

13

REF

INSTRUCTION

WATER PUMP; See Figure 02-31

1шт.
