Запчасти Case IH 445 (02-23) - PISTONS AND RINGS (02) - ENGINE

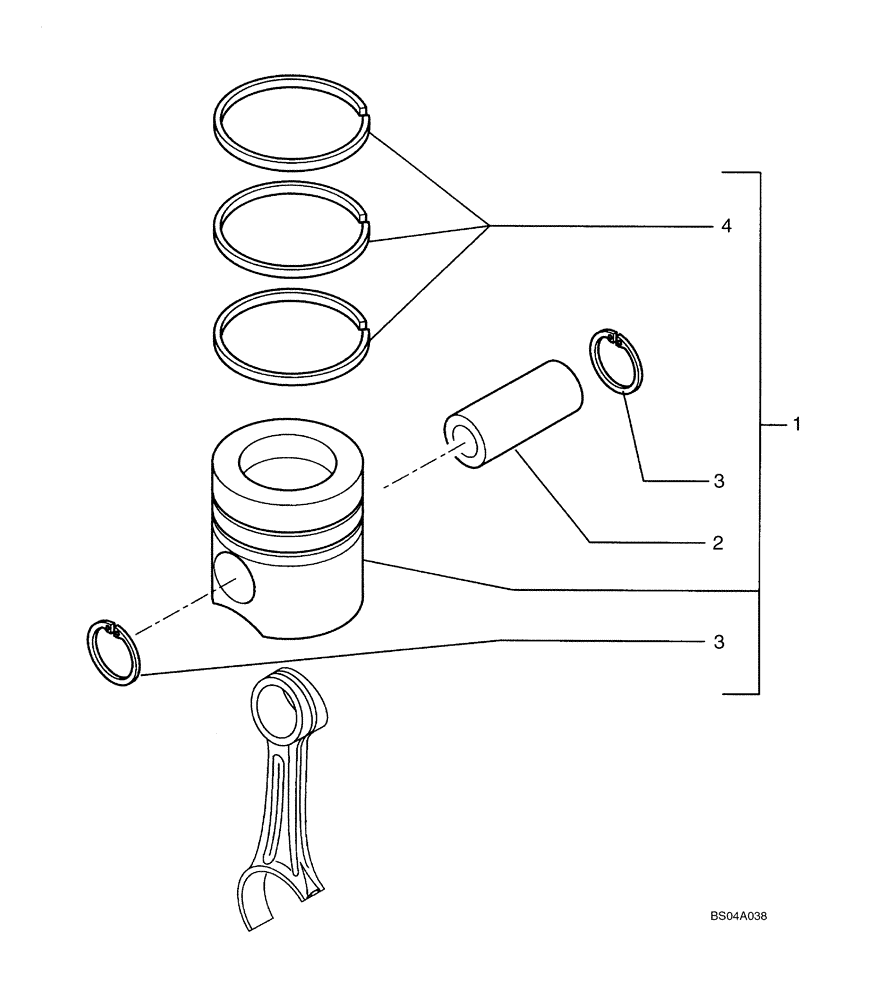

Схема запчастей Case IH 445 - (02-23) - PISTONS AND RINGS (02) - ENGINE
3
3
4
2
1

Артикул

Название

Примечание

Количество

1

87317238

PISTON & RINGS KIT

Piston And Rings (Standard); Kit Incl (1) Piston, (1) Top Compression Ring, (1) Second Compression Ring, (1) Oil Control Ring, (1) Piston Pin, (2) Retaining Clips; Replaces 1931220

4шт.

1

87317243

PISTON & RINGS KIT

Piston And Rings (0.4mm Oversize); Kit Incl (1) Piston, (1) Top Compression Ring, (1) Second Compression Ring, (1) Oil Control Ring, (1) Piston Pin, (2) Retaining Clips

4шт.

1

87317249

PISTON & RINGS KIT

Piston And Rings (0.8mm Oversize); Kit Incl (1) Piston, (1) Top Compression Ring, (1) Second Compression Ring, (1) Oil Control Ring, (1) Piston Pin, (2) Retaining Clips

4шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

4шт.

3

4892713

SNAP RING,Int, M26.4

Retaining Clip

8шт.

4

87316211

PISTON RINGS KIT

Piston Ring Kit (Standard); Kit Incl (1) Top Compression Ring, (1) Second Compression Ring, (1) Oil Control Ring; Replaces 1931214

4шт.

4

87316213

SET,PISTON RINGS+0.4

SET OF PISTON RINGS +0.4 Piston Ring Kit (0.4mm Oversize); Kit Incl (1) Top Compression Ring, (1) Second Compression Ring, (1) Oil Control Ring

4шт.

4

87316214

SET PISTON RINGS+0.8

Piston Ring Kit (0.8mm Oversize); Kit Incl (1) Top Compression Ring, (1) Second Compression Ring, (1) Oil Control Ring

4шт.

Выбрано товаров: 8
