Запчасти Case IH 445 (02-22) - PISTONS - CONNECTING ROD (02) - ENGINE

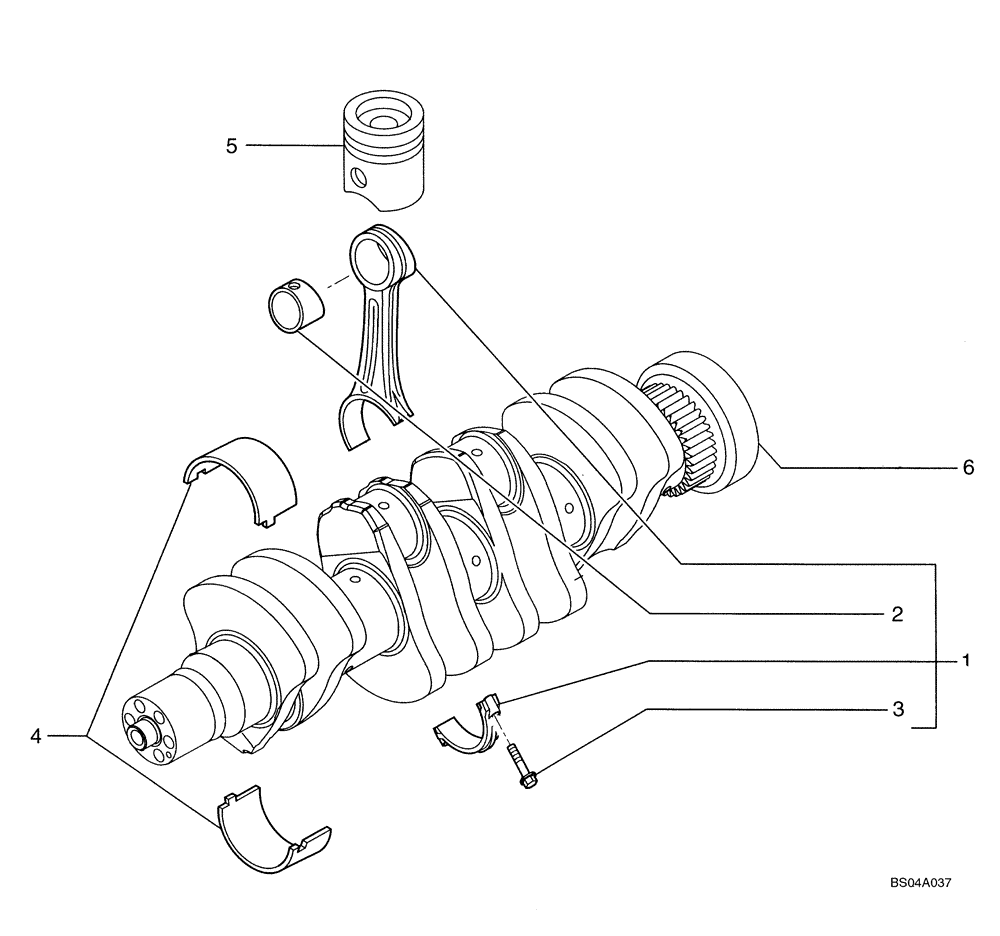

Схема запчастей Case IH 445 - (02-22) - PISTONS - CONNECTING ROD (02) - ENGINE
3
1
5
6
2
4

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

Incl. Ref 2, 3

4шт.

2831298R

REMAN-CONNECTING ROD

445 BSN N7M454787 ( 3/04 - 12/07 ) ,445CT N8M458846 ( 4/05 - 12/07 )

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

1/2; Incl. 4892714, 4892715

4шт.

4

8094960

BEARING SET,(-0.250)

4шт.

4

8094961

BEARING SET,(-0.500)

4шт.

5

REF

INSTRUCTION

PISTON; See Figure 02-23

1шт.

6

REF

INSTRUCTION

CRANKSHAFT; See Figure 02-21

1шт.

Выбрано товаров: 10
