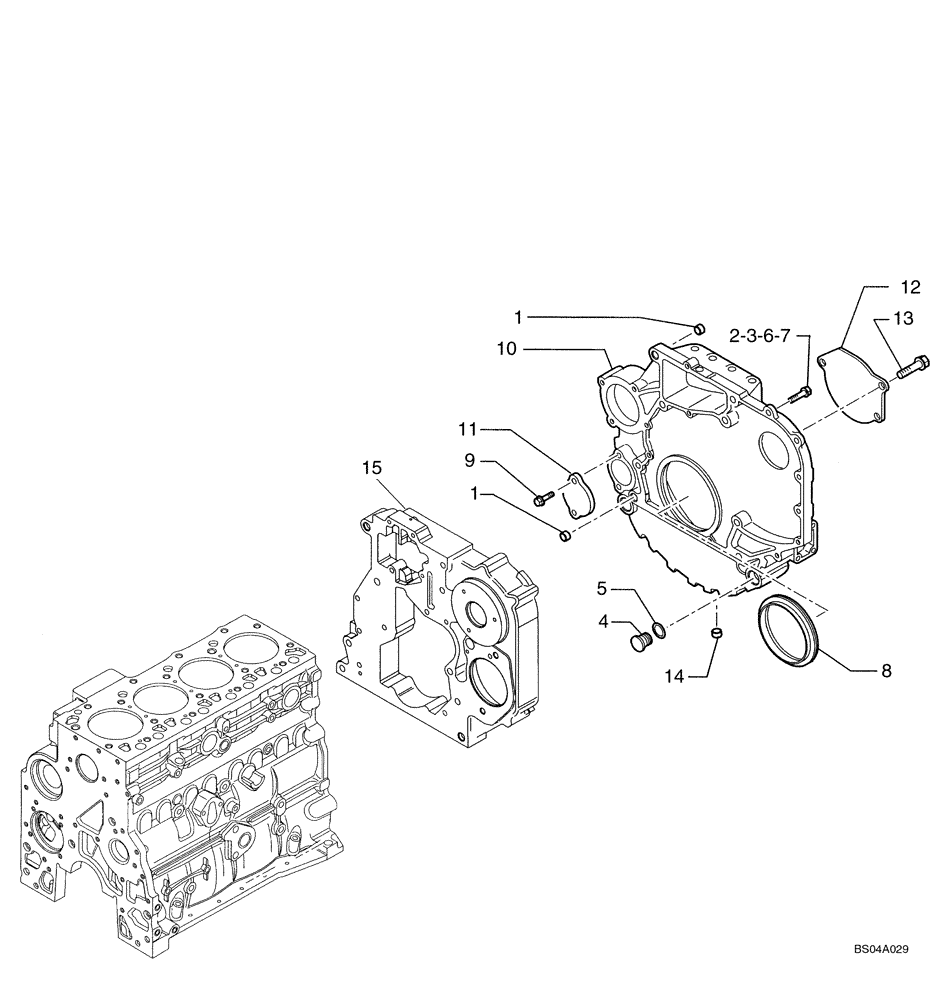

Запчасти Case IH 445 (02-14) - CYLINDER BLOCK - COVERS (02) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

3

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

7шт.

3

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

1шт.

4

4895378

BUTTON PLUG,M29.2

Does Not Include Seal, Purchase Seal Separately

2шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

2шт.

6

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

5шт.

7

4899074

SCREW,Hex Flg, M12 x 1.75 x 120

2шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

9

4899103

SCREW,Hex Flg, M8 x 1.25 x 12

2шт.

10

2853053

COVER

Flywheel Housing

1шт.

11

4895358

COVER

1шт.

12

2852025

COVER

Fuel Pump Gear

1шт.

13

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

3шт.

13

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

2шт.

14

4895079

PIPE PLUG,3/4"-14

1шт.

15

REF

INSTRUCTION

COVER; See Figure 02-12

1шт.
