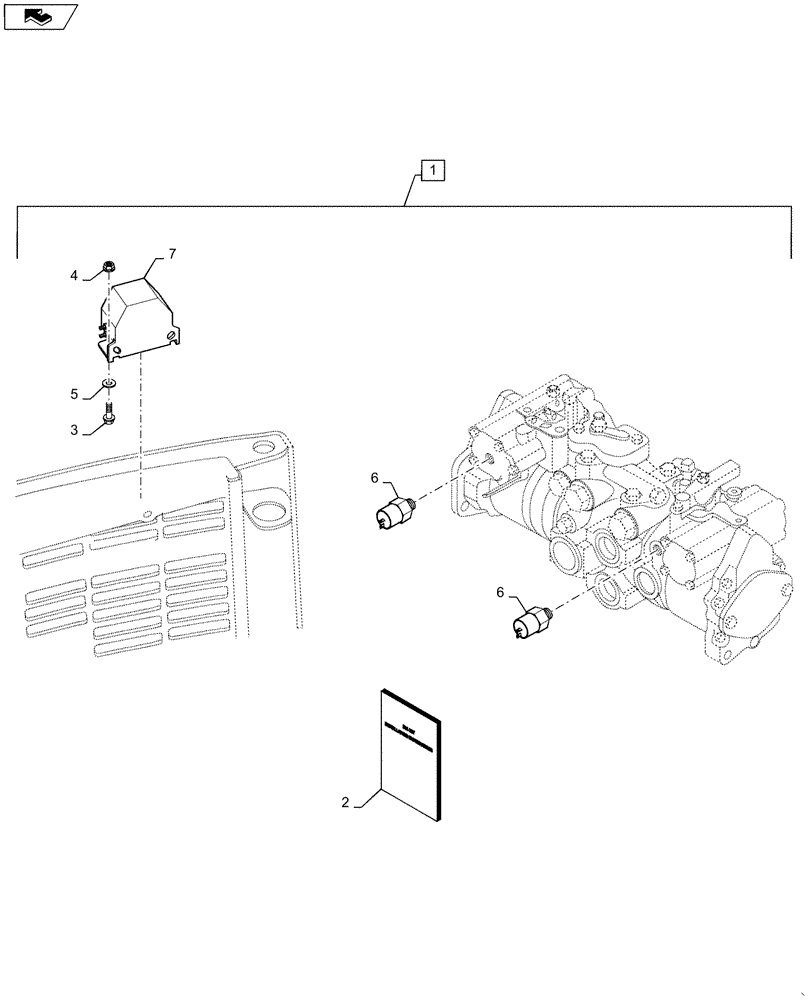

Запчасти Case IH 445 (88.055.01) - DIA KIT, MASTER DISCONNECT SWITCH (88) - ACCESSORIES

1

87411204

DIA KIT, ADD PROD

Master Disconnect Switch, Incl 2 - 18

1шт.

2

87381634

INSTRUCTION

Installation

1шт.

3

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

5

87443460

BRACKET

Remote Jump Start

1шт.

6

87418257

ELECTRIC CABLE

Battery Positive

1шт.

7

87418292

CABLE

Battery Negative

1шт.

8

176332A1

DECAL

Battery Disconnect

1шт.

9

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Remote Jump Start Positive

1шт.

10

399384A1

TERMINAL CONNECTOR

Remote Jump Start Negative

1шт.

11

87443652

CABLE

Negitive Battery

1шт.

12

399665A2

ANCHOR

Strip, Battery Jump Start

1шт.

13

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Clamp, Double

2шт.

14

87458467

ROTARY SWITCH

Master Disconnect

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

17

86512554

NUT,M10 x 1.5, Cl 10

P/T All Material

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
