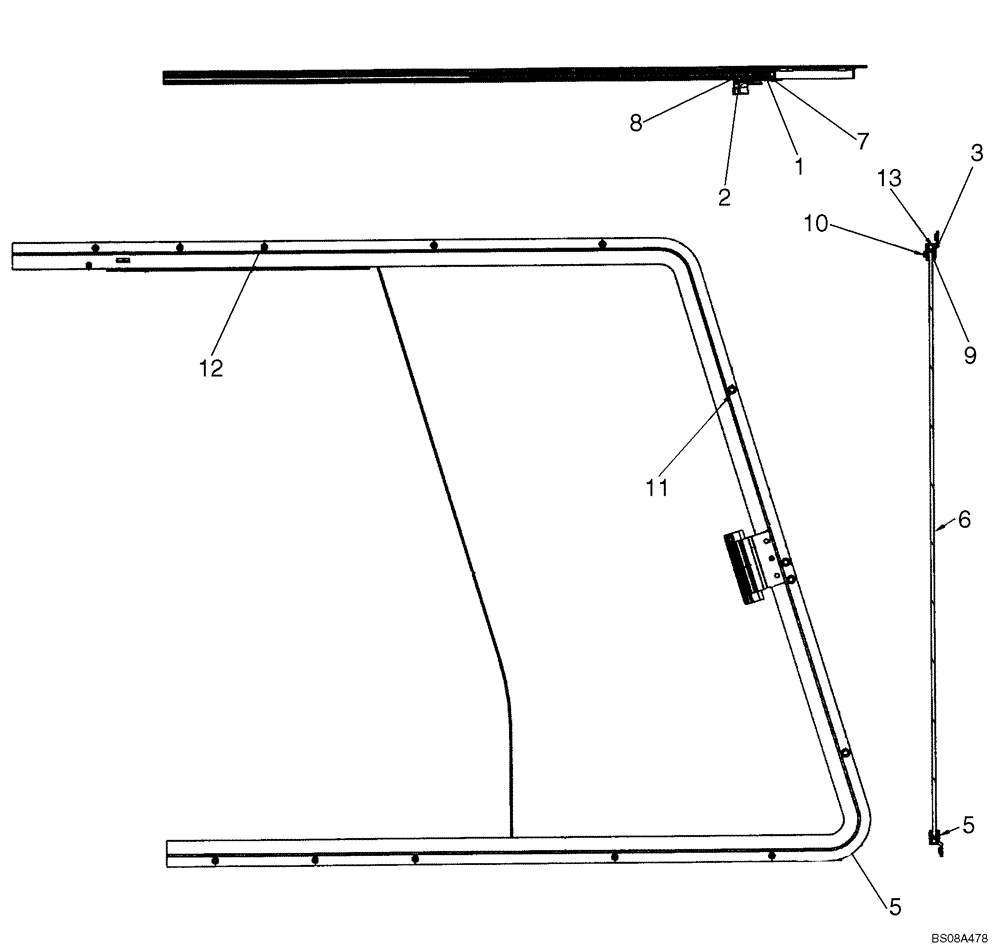

Запчасти Case IH 445 (09-31C) - SIDE WINDOW, INTERIOR - LH (09) - CHASSIS

87458067

WINDOW ASSY

Side Window, Interior, LH; Incl 1 - 13

1шт.

1

87385422

PLATE

Striker Plate

1шт.

2

87385423

LATCH ASSY.

1шт.

3

87385424

FELT

Felt Track

1шт.

4

87385425

BLOCK

Stop Block; Not Illustrated

1шт.

5

87701658

WINDOW FRAME

Main Frame Assembly, LH

1шт.

6

87701683

CAB GLASS ASSY

Slider Glass Panel Assembly, LH

1шт.

7

NSS

NOT SOLD SEPARAT

Pop Rivet

3шт.

8

NSS

NOT SOLD SEPARAT

Tape

1шт.

9

NSS

NOT SOLD SEPARAT

Rigid PVC Track

1шт.

10

NSS

NOT SOLD SEPARAT

Stop Screw, #8 X 3/8 in.

1шт.

11

NSS

NOT SOLD SEPARAT

M6 Threaded Insert

4шт.

12

NSS

NOT SOLD SEPARAT

M5 Threaded Insert

10шт.

13

NSS

NOT SOLD SEPARAT

Removable Track

3шт.
