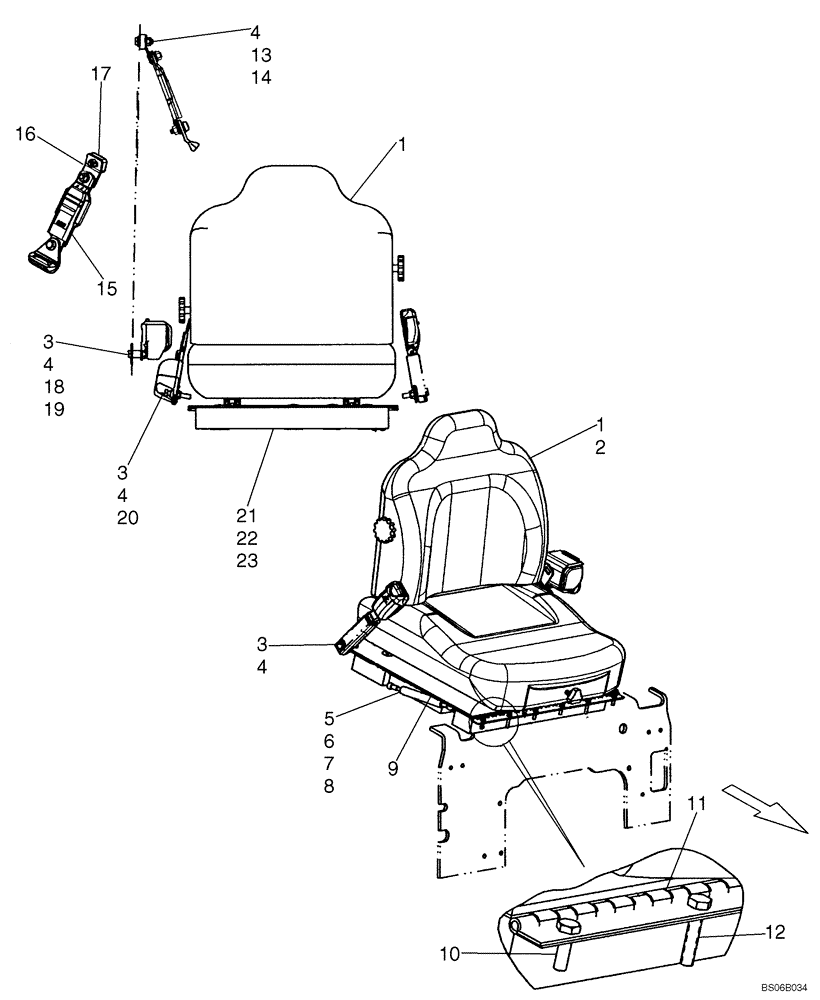

Запчасти Case IH 445 (09-19A) - SEAT, MOUNTING - SUSPENSION, RETRACTABLE SEAT BELT (09) - CHASSIS

1

400681A1

SEAT

See Figure 09-19 - 09-22

1шт.

2

9628098

NUT,M8 x 1.25, Cl 10

4шт.

3

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

3шт.

4

86512554

NUT,M10 x 1.5, Cl 10

4шт.

5

189787A2

SHOCK ABSORBER

Incl 8

1шт.

6

189609A1

BALL STUD,M8 x 1.25

2шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

254307A1

CLIP

2шт.

9

302136A1

LARGE PLATE

PLATE, LARGE Seat To Hinge

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

11

259875A1

CROSSMEMBER

Stiffener Seat Hinge

1шт.

12

80120101

BOLT

Thrd To Hd M6 x 30 Cl 8.8

2шт.

13

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

15

87457899

SAFETY BELT ,50.80 mm W

1шт.

16

87461782

BRACKET

Shoulder Belt

1шт.

17

87458037

CARRIER

Spacer

1шт.

18

371108R1

SPACER,3/8" Pipe x .844"

1шт.

19

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

1шт.

20

SA2344

SPACER,3/8" Pipe x 7/16"

1шт.

21

87439795

PAD

Seat Noise Control

1шт.

22

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

Flat

5шт.

23

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push In

5шт.
