Запчасти Case IH 445 (09-19) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS

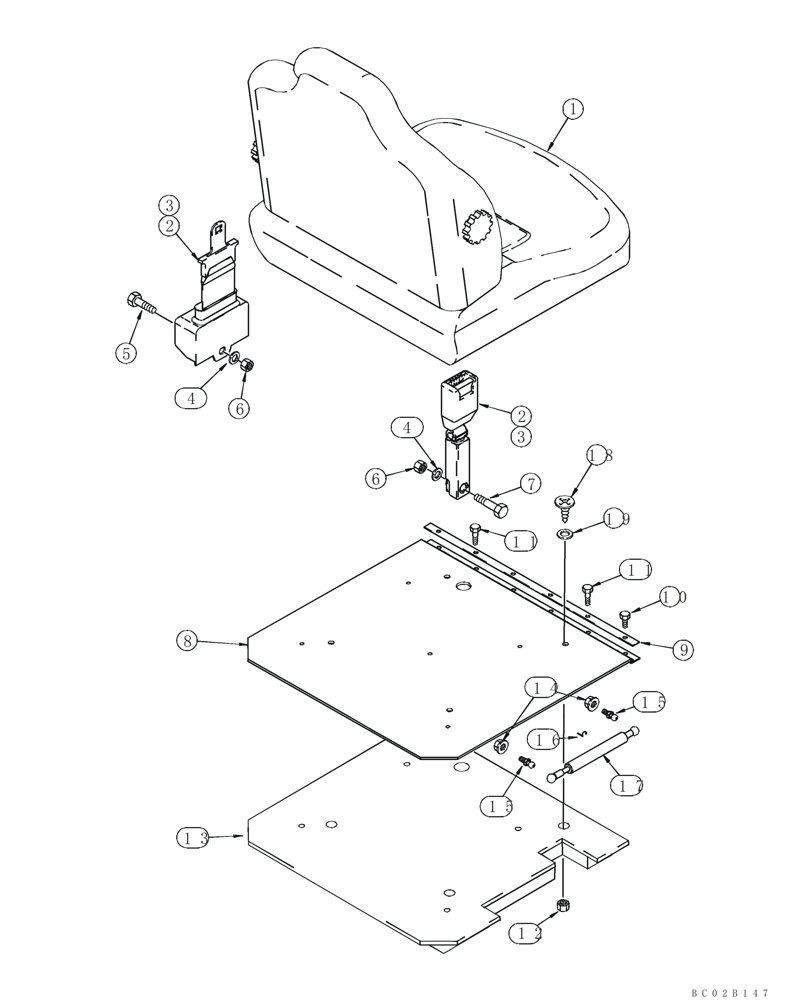

Схема запчастей Case IH 445 - (09-19) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS
3
6
2
11
19
15
17
18
15
3
14
1
11
13
7
4
9
12
4
6
2
8
10
5
16
bc02b147

Артикул

Название

Примечание

Количество

1

400681A1

SEAT

See Figure 09-19 - 09-22

1шт.

2

249116A1

SAFETY BELT ,50.80 mm W

Includes 4

1шт.

3

249117A1

SAFETY BELT ,76.20 mm W

North American Only, Includes 4

1шт.

4

NSS

NOT SOLD SEPARAT

Washer

2шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

6

86512554

NUT,M10 x 1.5, Cl 10

2шт.

7

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

8

302136A1

LARGE PLATE

PLATE, LARGE

1шт.

9

259875A1

CROSSMEMBER

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

11

80120101

BOLT

M6 x 30

2шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

13

87439795

PAD

Seat Noise Control

1шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

15

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

16

254307A1

CLIP

2шт.

17

189787A2

SHOCK ABSORBER

Incl 16

1шт.

18

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia

5шт.

19

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD

5шт.

Выбрано товаров: 19
