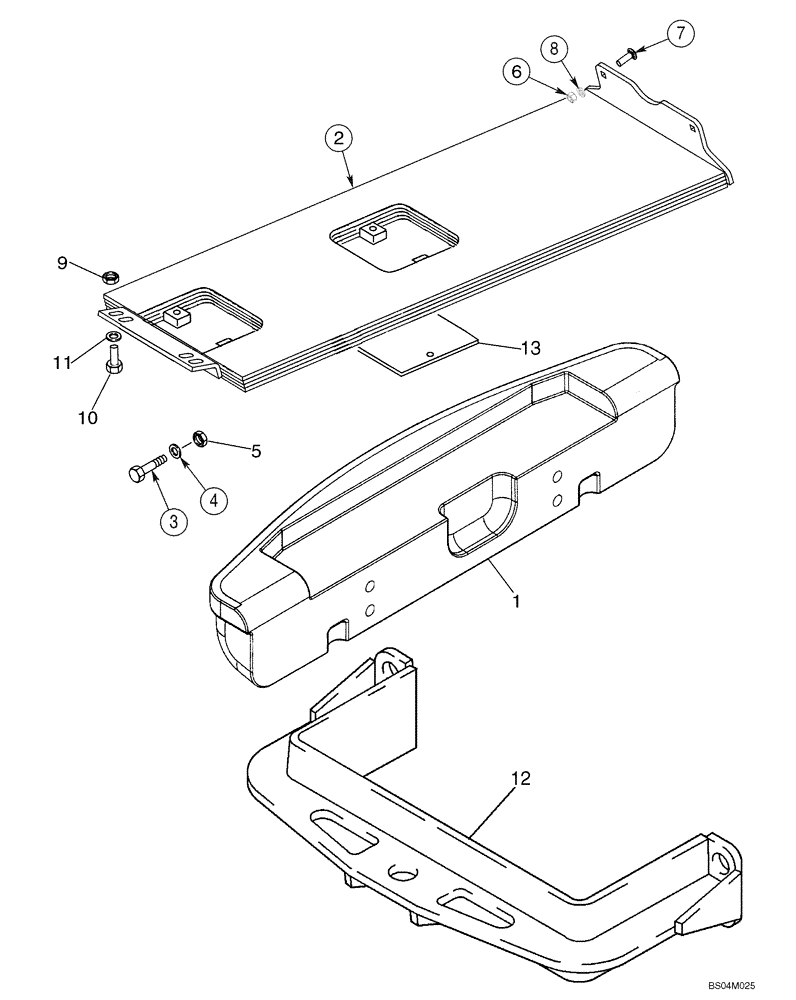

Запчасти Case IH 445 (09-17) - COUNTERWEIGHTS (09) - CHASSIS

1

87457671

BUMPER

Heavy; Rear

1шт.

2

87458493

WEIGHT

Belly Pan

1шт.

3

87460831

BOLT

M20 x 70; 10.9

4шт.

3

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

4

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

If Used

4шт.

5

86536985

NUT,M20 x 2.5, Cl 10

If Used

4шт.

6

832-41416

NUT,M16 x 2, Cl 10

2шт.

7

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

8

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

86536985

NUT,M20 x 2.5, Cl 10

2шт.

10

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

2шт.

11

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

12

258483A1

DRAWBAR

1шт.

13

87458495

COVER PLATE

Used With 43260

1шт.

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.
