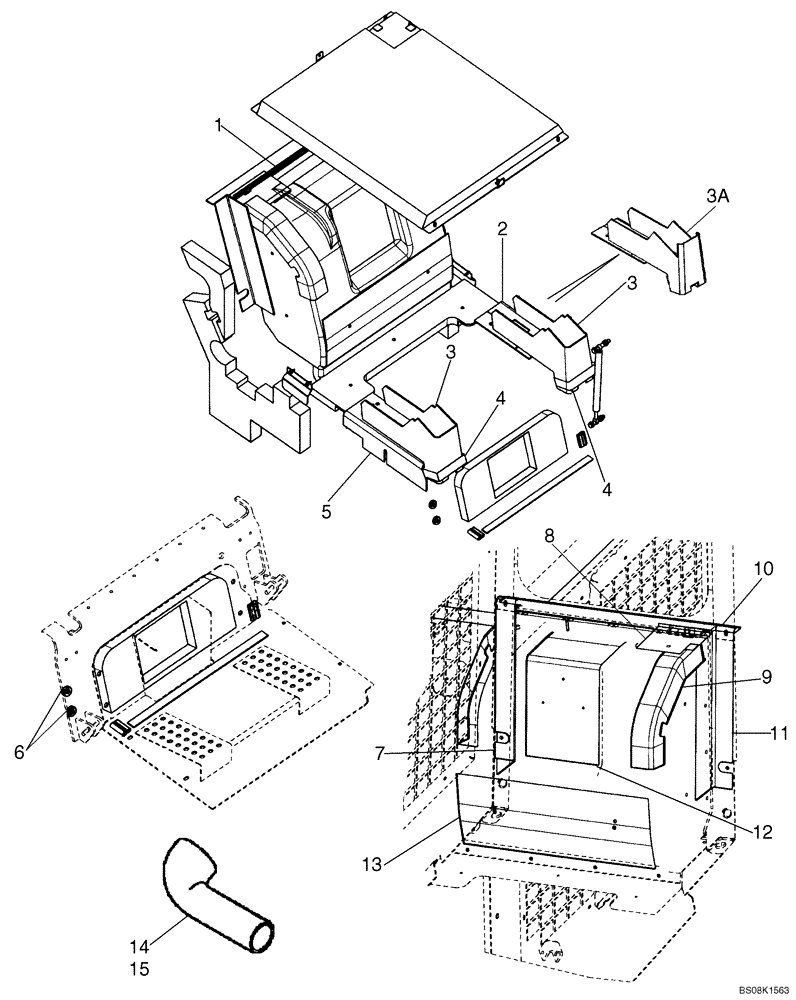

Запчасти Case IH 445 (09-16A) - SOUND PADS (IF USED) (09) - CHASSIS

87371273

KIT

European Cab Noise Reduction; Incl. 1 - 15, Fasteners 348452A1, Floor Mat 87461562, And Muffler Wrap 87369267

1шт.

87542246

CONVERSION KIT

European Cab Noise Reduction; Incl. 1 - 9, 11 - 15, Fasteners 348452A1, Floor Mat 87461562, Muffler Wrap 87588078, Twsit Ties 87393399 And Instructions

1шт.

1

315083A1

SEALING STRIP

Rear Window Frame Seal

1шт.

2

308877A1

PAD

Left Hand Console Barrier

1шт.

3

308917A1

PAD

Console Sound Dampening; If Used

2шт.

3a

87723375

CONSOLE

Console Sound Dampening; If Used

2шт.

4

295007A1

SEAL

Console

2шт.

5

308879A1

PAD

Right Hand Console Barrier

1шт.

6

313231A1

BAND

Cab Seal; If Used

2шт.

7

309703A1

SHEET

Left Hand Extension

1шт.

8

311222A1

LARGE PLATE

PLATE, LARGE Lock Barrier

1шт.

9

309011A1

SHEET

Upper Corner

2шт.

10

309701A1

SHEET

Hood Extension; If Used

1шт.

11

309702A1

SHEET

Right Hand Extension

1шт.

12

318165A1

INSULATOR

Upper

1шт.

13

318166A1

INSULATOR

Lower

1шт.

14

87573940

HOSE

Engine Intake; Replaces 315522A1

1шт.

15

86633353

HOSE CLAMP,70mm - 92mm

1шт.

348452A1

FASTENER,Push-In, 37mm L, Nylon

Fastener, Push-In

20шт.

87369267

GUARD

Muffler Wrap; If Used

1шт.

87541360

MUFFLER

Muffler Wrap; If Used

1шт.

87588078

FOAM

Muffler Wrap; Secure With (9) 87393399 Twist Ties; If Used

1шт.

87393399

SPRING

Twist Ties

1шт.

87461562

FLOOR MAT

See Figure 09-16B

1шт.
