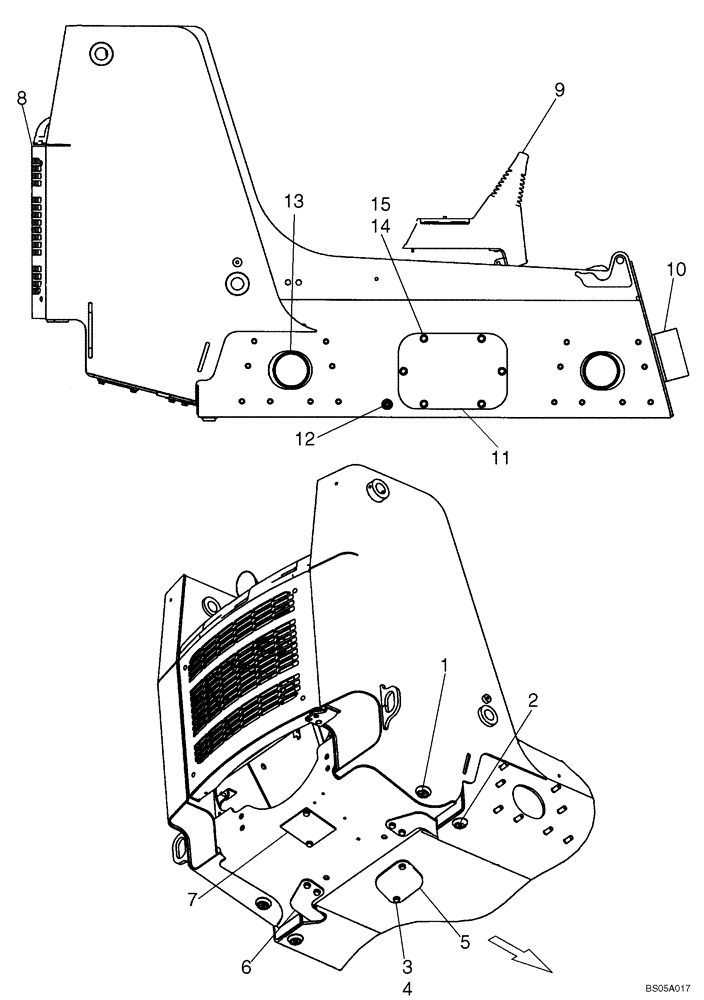

Запчасти Case IH 445 (09-09) - CHASSIS (445) (09) - CHASSIS

1

87432221

PLUG

2шт.

2

86625135

PLUG,1" - 11-1/2 NPT

2шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

5

247609A1

COVER

2шт.

6

189422A1

COVER

Plate

2шт.

7

H436914

LARGE PLATE

PLATE, LARGE

1шт.

8

REF

INSTRUCTION

Rear Door; See Figure 09-15

1шт.

9

192654A2

BELLOWS

2шт.

9

87577502

RUBBER PAD

Used With Handles On 04-15B, 04-16B

2шт.

10

REF

INSTRUCTION

Frame; See Figure 09-08, Ref 1

1шт.

11

87411208

COVER PLATE

2шт.

12

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

2шт.

13

86991034

PLUG

Axle Access

4шт.

14

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

12шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

16

254799A1

STUD

M16 x 45; Axle Studs

32шт.
