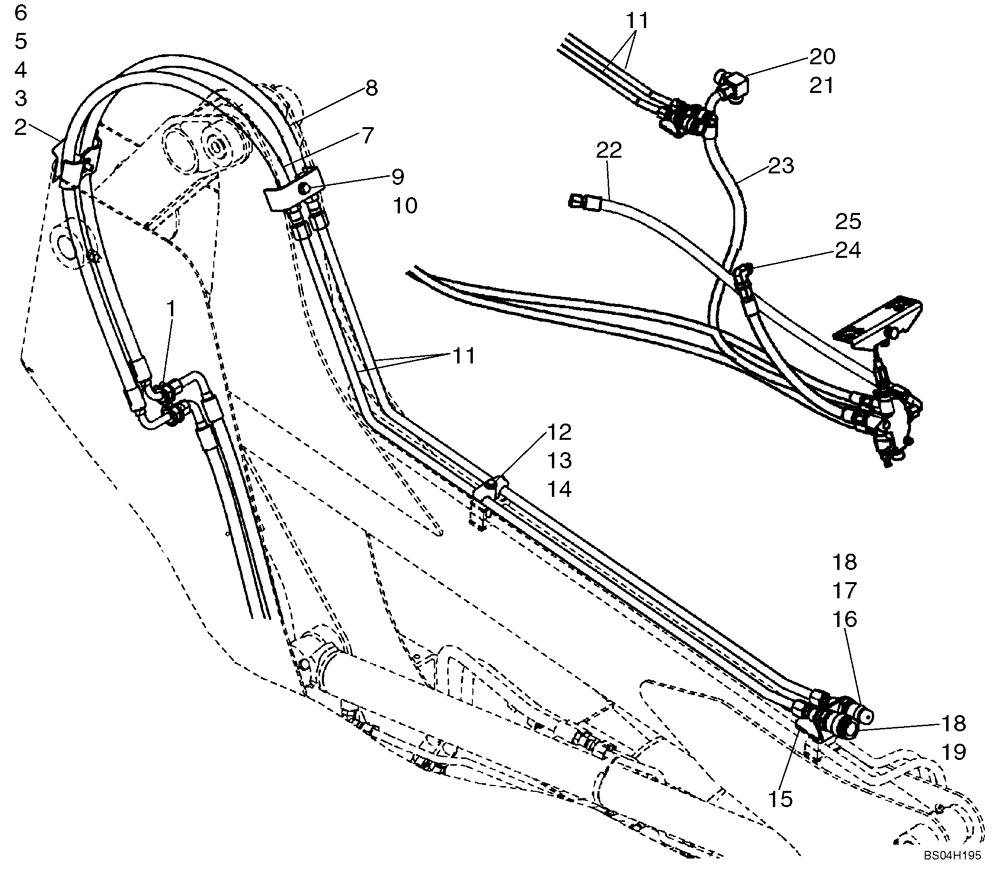

Запчасти Case IH 445 (08-19) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

1

103-3398

SNAP RING,#X98, .822" Dia, E-Type

If Used

4шт.

1

87301328

SNAP RING

#X98, E-Style

4шт.

2

436500A1

PLATE

Hose Routing Guard

1шт.

3

276433A1

CLAMP

1шт.

4

256690A1

SPACER

1шт.

5

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

6

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

7

87429655

HOSE ASSY.

1шт.

8

87429656

HOSE ASSY.

1шт.

9

281-54928

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 1 3/4"

If Used

1шт.

9

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Hex Washer, .375 x 1.75

1шт.

10

87429702

BRACKET

Hose Support

1шт.

11

87429605

TUBE,15.88 mm OD x 960.7, 920.9 mm L

2шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

13

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

14

D120613

CLAMP,20mm ID

5/8

1шт.

15

87444404

BRACKET

Auxiliary Quick Disconnect

1шт.

16

87417308

COUPLING, BREAK AWAY

1/2; male; Incl. 17; If Used

1шт.

16

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

17

87426762

RING

Not Illustrated Separately

1шт.

18

595460

BHD LOCK NUT,7/8" - 14

2шт.

19

393394A1

COUPLING, BREAK AWAY

1/2; Female; If Used

1шт.

19

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

20

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

1-5/16 fl br x fl x Or; Incl. 21

1шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

87456810

HOSE ASSY.

Secondary Auxiliary Outlet

1шт.

23

87452084

HOSE ASSY.

Tank Return

1шт.

24

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

If Used; Incl. 25

1шт.

24

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

If Used; Incl. 25

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
