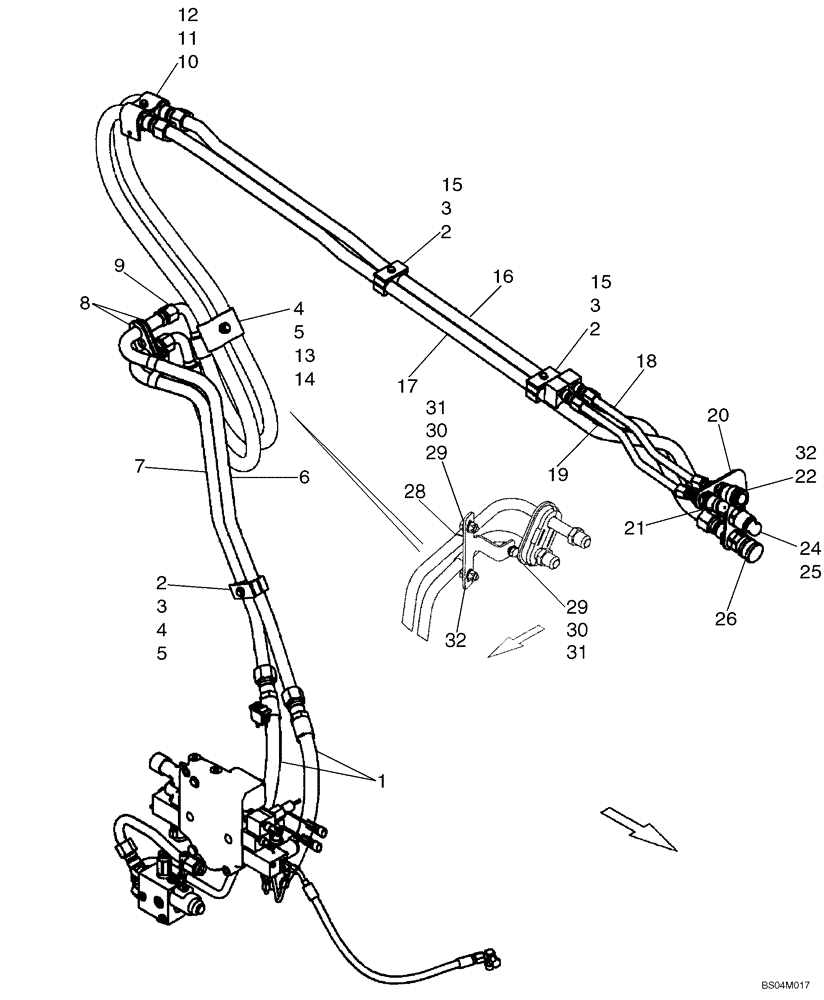

Запчасти Case IH 445 (08-15) - HYDRAULICS, ATTACHMENT - HIGH FLOW, SUPPLY AND RETURN (08) - HYDRAULICS

1

87019071

HYDRAULIC HOSE

Supply And Return

2шт.

2

225529A1

CLAMP,Dual, 25.4mm ID

3шт.

3

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

3шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

5

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

6

87442186

HYD TUBE,25.4 mm OD x 593.2, 587.2 mm L

1шт.

7

87442187

HYD TUBE,25.4 mm OD

1шт.

8

87017999

SUPPORT

2шт.

9

87016401

HOSE

2шт.

10

87415965

CLAMP

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

13

276432A1

HOSE CLAMP

1шт.

14

371108R1

SPACER,3/8" Pipe x .844"

1шт.

15

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

16

87412452

TUBE,25.40 mm OD x 1507.1, 479.1 mm L

1шт.

17

87412454

TUBE,25.40 mm OD x 1520.6, 414.1 mm L

1шт.

18

87412458

HYD TUBE,15.9 mm OD x 369.9, 37.6 mm L

Auxiliary

1шт.

19

87412456

HYD TUBE,15.9 mm OD x 369.9, 37.7 mm L

Auxiliary

1шт.

20

87412449

BRACKET

High Flow Quick Disconnect

1шт.

21

87417308

COUPLING, BREAK AWAY

1/2; Male Quick Disconnect; Incl. 87426762

1шт.

87426762

RING

Not Illustrated

1шт.

22

393394A1

COUPLING, BREAK AWAY

1/2; Female Quick Disconnect

1шт.

23

595460

BHD LOCK NUT,7/8" - 14

2шт.

24

87022672

QUICK MALE COUPLING

Male; Mating Connector For 87022672 (Male) Is 395267A1 (Female)

1шт.

25

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

26

87022671

COUPLING, QUICK, FEM

Female; Mating Conector For 87022671 (Female) Is 395268A1 (Male)

1шт.

27

87414769

SWITCH

High Flow

1шт.

28

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

30

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

31

9628098

NUT,M8 x 1.25, Cl 10

3шт.

32

87458691

BRACKET

Bar Clamp

1шт.
