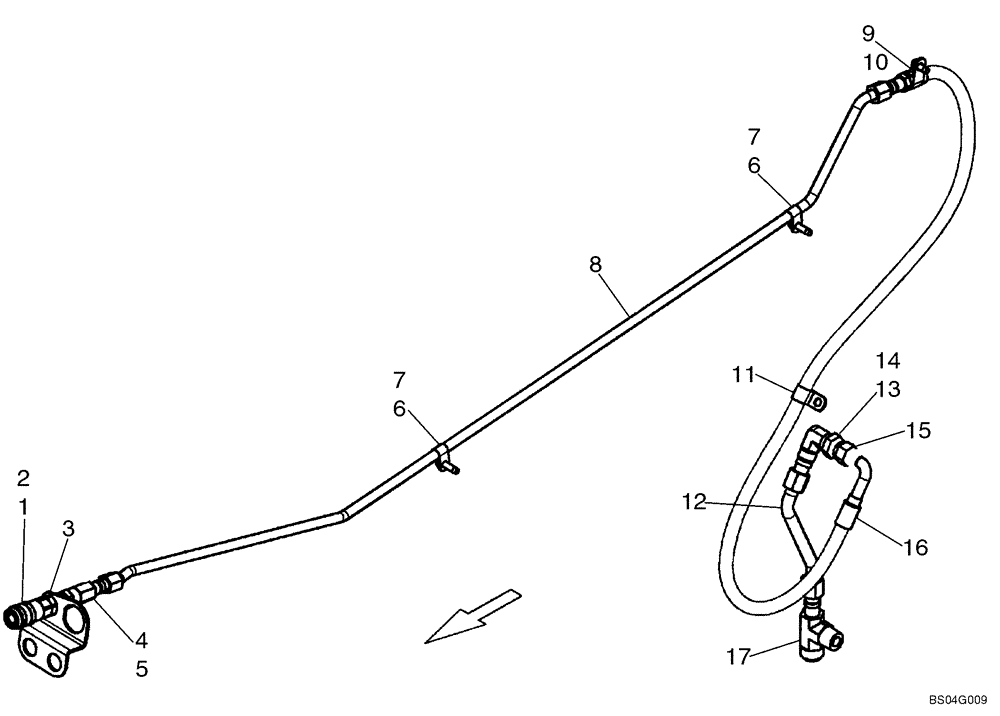

Запчасти Case IH 445 (08-05A) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

87024562

Kit, Case Drain; Incl 1 - 17

1шт.

1

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

2

87019286

COUPLING

1шт.

3

87453780

BRACKET

Auxiliary Electric, Case Drain

1шт.

4

218-5492

HYD CONNECTOR,1/2" x 1/2" x 3/8" Run, Swivel 37 Degree Fitting

1шт.

5

574342

CAP,9/16" - 18 JIC

Remove When Hydraulic Coupler Option Is Installed

1шт.

6

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

3шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

8

87453779

HYD TUBE,12.7 mm OD x 1475.7, 310.5 mm L

Case Drain

1шт.

9

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

1шт.

10

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

12

87438922

HYD TUBE,15.9 mm OD x 198.7, 163.2 mm L

Case Drain

1шт.

13

595460

BHD LOCK NUT,7/8" - 14

1шт.

14

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

15

9848041

REDUCER

1шт.

16

87412461

HOSE ASSY.

Case Drain

1шт.

17

218-566

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.
