Запчасти Case IH 445 (08-05) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

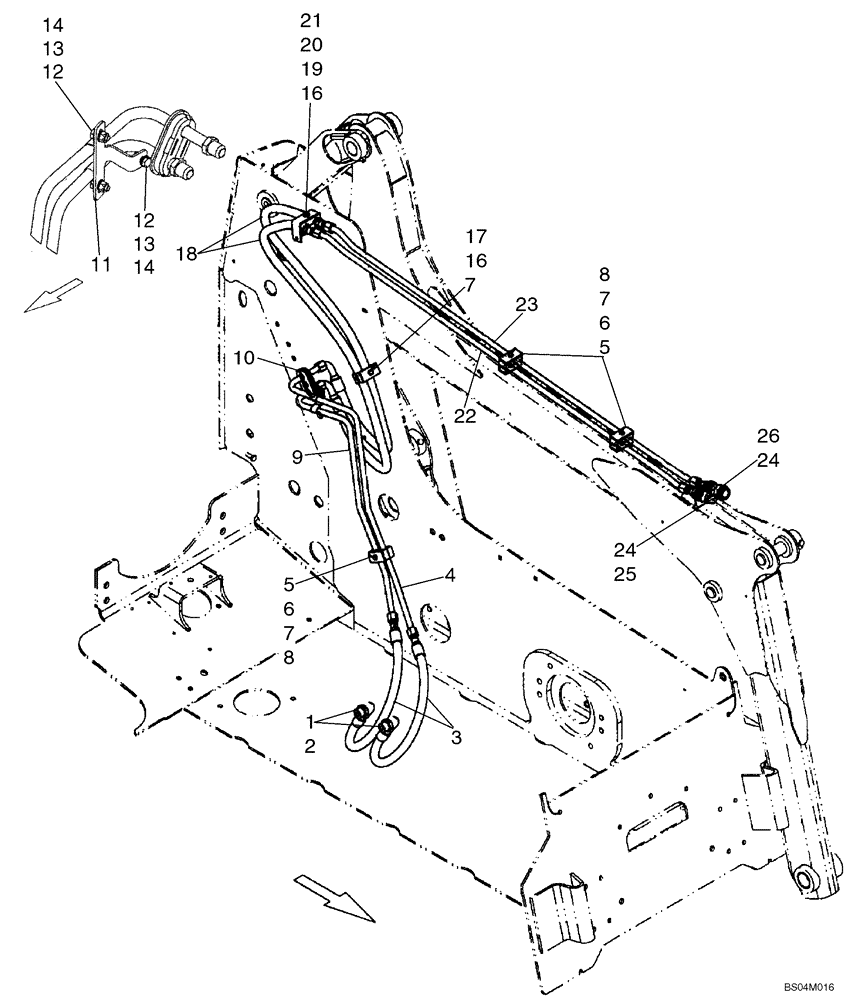

Схема запчастей Case IH 445 - (08-05) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS
21
18
11
7
7
24
1
3
22
5
14
20
17
9
25
26
7
6
19
13
10
4
8
8
13
24
2
16
6
14
23
12
12
16
5

Артикул

Название

Примечание

Количество

1

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

87404895

HOSE ASSY.

Valve, Auxiliary

2шт.

4

87442188

HYD TUBE,15.9 mm OD

Auxiliary

1шт.

5

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

6

257857A1

CLAMP

2 piece

3шт.

7

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

4шт.

8

259905A1

SPACER

3шт.

9

87442189

HYD TUBE,15.9 mm OD

Auxiliary

1шт.

10

87018001

SUPPORT

2шт.

11

87458691

BRACKET

Clamp Mounting

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

13

14048221

NUT,M8 x 1.25, Cl 10

3шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

15

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

17

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

1шт.

18

87405187

HOSE ASSY.,15.88mm ID x 1315mm L

Tip Cylinder

2шт.

19

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

20

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID; Two Piece

1шт.

21

87415966

BAR

Clamp Top

1шт.

22

87412532

HYD TUBE,15.9 mm OD x 1555.8, 344.9 mm L

Auxiliary Hydraulic

1шт.

23

87412534

HYD TUBE,15.9 mm OD x 1555.8, 344.9 mm L

Auxiliary Hydraulic

1шт.

24

595460

BHD LOCK NUT,7/8" - 14

2шт.

25

87417308

COUPLING, BREAK AWAY

Male; Incl. 25A

1шт.

25a

87426762

RING

Not Illustrated Separately

1шт.

26

393394A1

COUPLING, BREAK AWAY

Female; Component Parts Not Serviced Separately

1шт.

Выбрано товаров: 27
