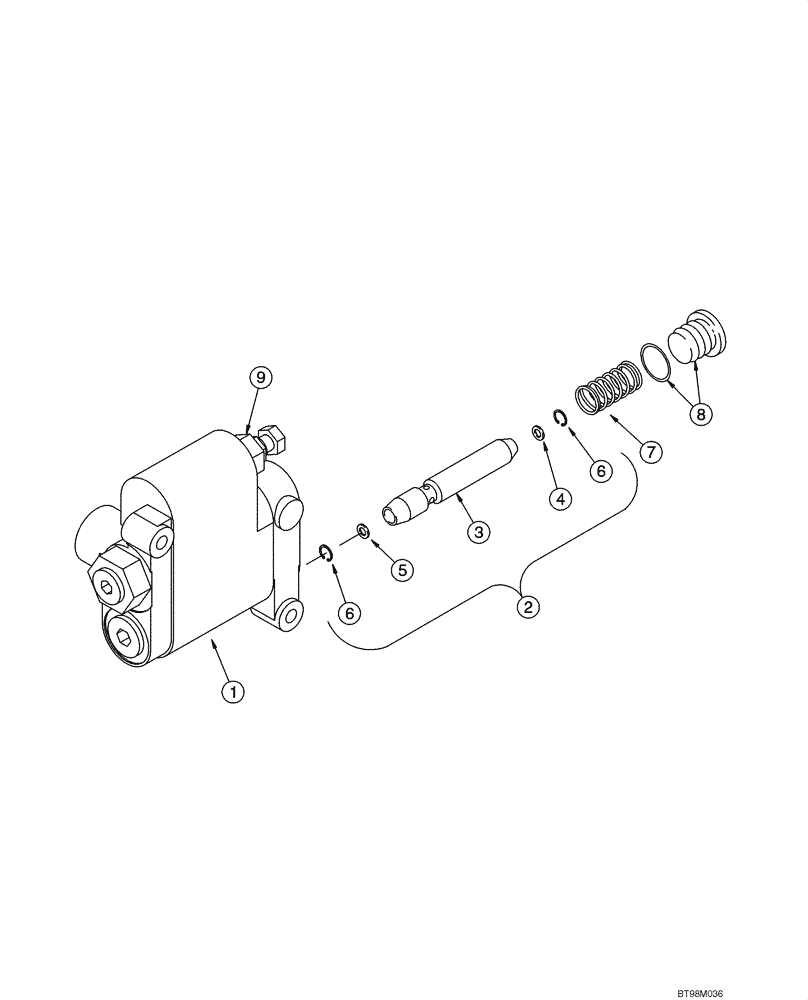

Запчасти Case IH 445 (08-04) - VALVE ASSY, SELF LEVEL (08) - HYDRAULICS

280126A2

VALVE

Self- Level; Incl. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

345684A1

SEAL KIT

Incl. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

304131A1

SET OF PARTS

Kit, Hydraulic Self Level; Incl 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Orifice, Outer

1шт.

5

NSS

NOT SOLD SEPARAT

Orifice, Inner

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Plug

1шт.

9

345682A1

VALVE

Relief; Self-Level

1шт.
