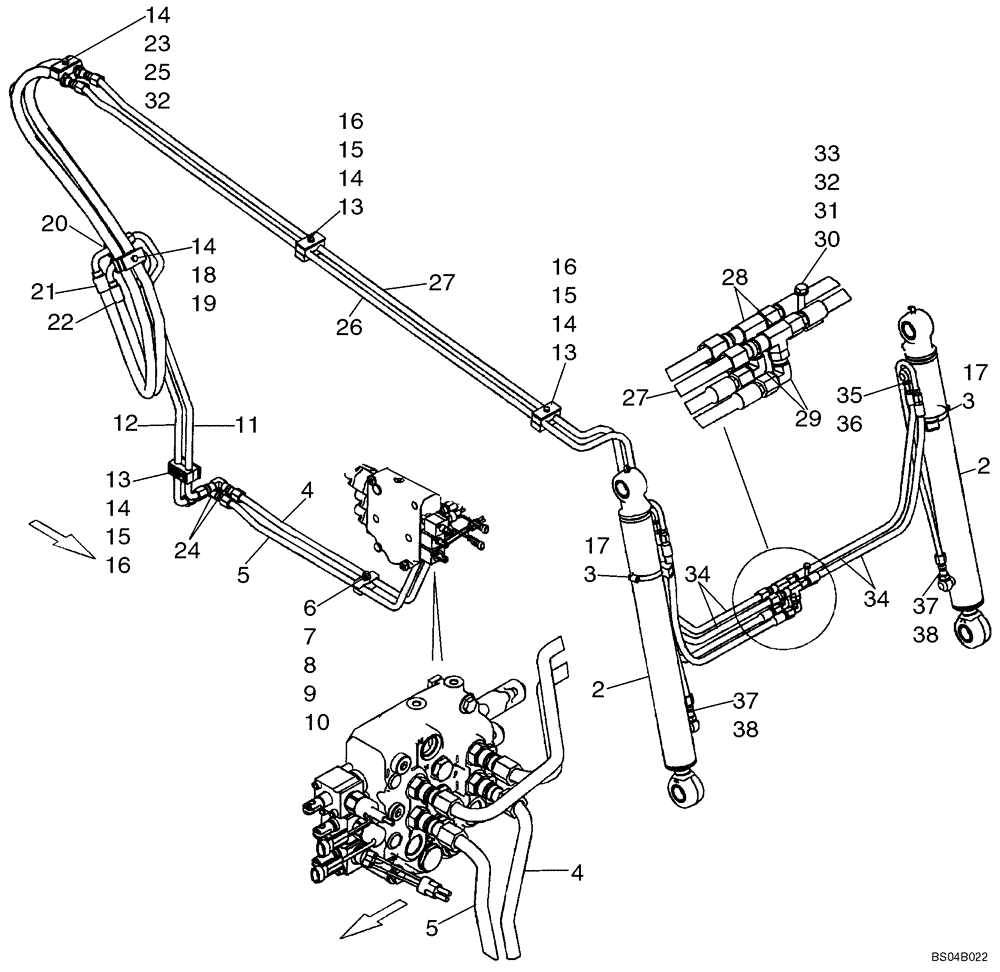

Запчасти Case IH 445 (08-02) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

1

87583285

VALVE

Control Valve; See Figure 08-22A; Replaces 87527172

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available

1шт.

1

87635384R

445 SKID STEER - BSN N7M454787 (3/04-12/07), 445CT COMPACT TRACK LOADER - BSN N8M458846 (4/05-12/07), Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

2

259694A3

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 525mm Stroke

63.5 ID x 525 mm strk; See Figure 08-12

2шт.

2

259694A3R

445 BSN N7M454787, 445CT BSN N8M458846

REMAN-HYD CYLINDER

2шт.

2

259694A3C

Return Number

CORE-HYD CYLINDER

2шт.

3

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

4

87436561

HYD TUBE,15.9 mm OD

Dump

1шт.

5

87436559

HYD TUBE,15.9 mm OD x 760.9, 352.5 mm L

Curl

1шт.

6

D120613

CLAMP,20mm ID

1шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

8

86512554

NUT,M10 x 1.5, Cl 10

1шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

11

418943A1

HYD TUBE

1шт.

12

418942A1

TUBE

1шт.

13

257857A1

CLAMP

2 piece

3шт.

14

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

5шт.

15

259905A1

SPACER

3шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

17

D38648

BLOCK

2шт.

18

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

20

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

21

281948A2

HOSE ASSY.,15.88mm ID x 1380mm L

1380 mm (54-3/8 in)

1шт.

22

293623A2

HOSE ASSY.,15.88mm ID x 1315mm L

1315 mm (51-7/8 in)

1шт.

23

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID; Two Piece

1шт.

24

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

2шт.

25

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

26

323246A1

TUBE

Closed End

1шт.

27

323248A1

TUBE

Open End

1шт.

28

218-1583

TEE,37 Degree, 3/4"-16 x 7/8"-14, Run

2шт.

29

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

30

A12032

CLAMP

1шт.

31

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

1шт.

32

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

33

832-41408

NUT,M8 x 1.25, Cl 10

1шт.

34

284027A2

HOSE ASSY.,9.53mm ID x 740mm L

740 mm (29-1/8 in)

4шт.

35

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 36

2-4шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

284030A2

PIPE

2шт.

38

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl. 39

2шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated Separately

1шт.
