Запчасти Case IH 445 (02-03) - EXHAUST SYSTEM (02) - ENGINE

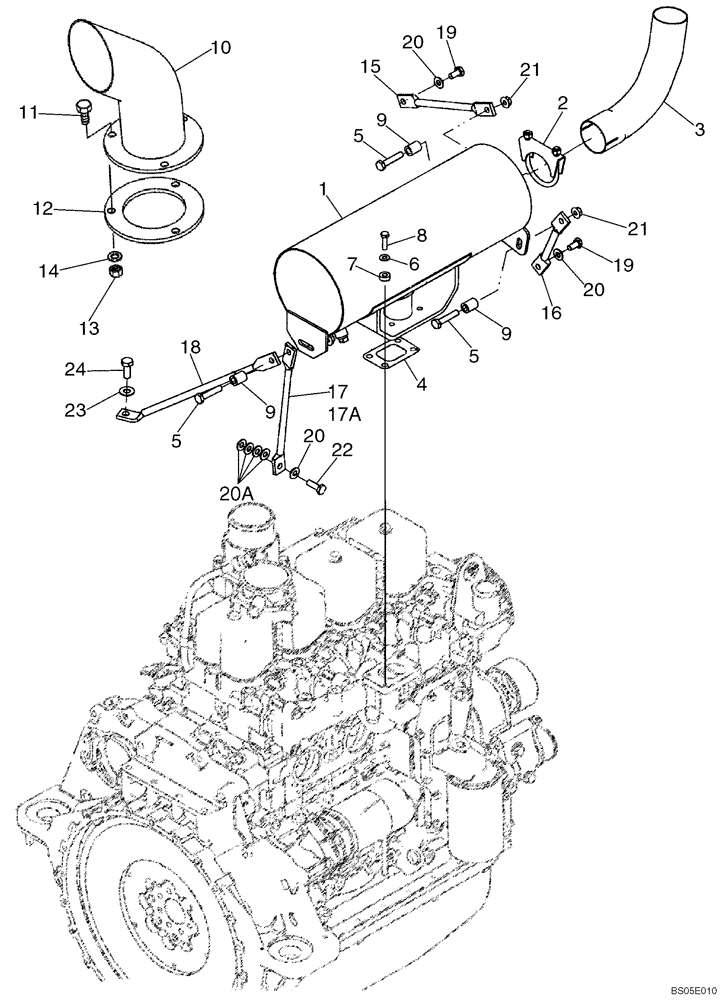

Схема запчастей Case IH 445 - (02-03) - EXHAUST SYSTEM (02) - ENGINE
10
19
22
20
17
9
1
19
15
7
20
7
17a
4
20a
21
9
24
5
5
23
8
2
5
21
12
11
18
14
3
9
16
13
20

Артикул

Название

Примечание

Количество

1

87040452

MUFFLER

Assy

1шт.

2

A13240

CLAMP,2-5/8" ID

Muffler

1шт.

2

87461995

CLAMP,68mm ID, Muffler

Muffler; Replaces A13240

1шт.

3

87040455

EXHAUST SYSTEM PIPE,64.26 mm OD x 234.94, 143.02 mm L

Tailpipe

1шт.

4

87021302

GASKET,0.43mm Thk

Muffler Inlet Pipe

1шт.

5

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

87606607

SPACER,8.73mm ID x 20.05mm OD x 7.9mm L

Muffler Spacer, Auto Coat; Replaces 86633393

4шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

9

256690A1

SPACER

3шт.

10

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Extension; 268 mm (10.55 in) Tall; Replaces 304811A1; If Used

1шт.

10

87725355

EXHAUST SYSTEM PIPE

Exhaust Extension; 243 mm (9.57 in) Tall; If Used

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

12

247026A1

LARGE PLATE

PLATE, LARGE Exhaust Doubler

1шт.

13

14048221

NUT,M8 x 1.25, Cl 10

3шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

15

87040820

ROD

Muffler Support

1шт.

16

87040819

ROD

Muffler Support

1шт.

17

87040818

ROD

Muffler Support; 352.1 mm (13.86 in), If Used

1шт.

17a

87043605

ROD

Muffler Support; 354.9 mm (13.97 in), If Used

1шт.

18

87040817

ROD

Muffler Support

1шт.

19

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

20a

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

Used with Ref 17

4шт.

21

411345A1

LOCK NUT

Flange, Spiral Lock, M10

3шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

Выбрано товаров: 28
