(06-16) - PUMP, GEAR (WITHOUT HIGH FLOW)

Запчасти Case IH 445 (06-16) - PUMP, GEAR (WITHOUT HIGH FLOW) (06) - POWER TRAIN

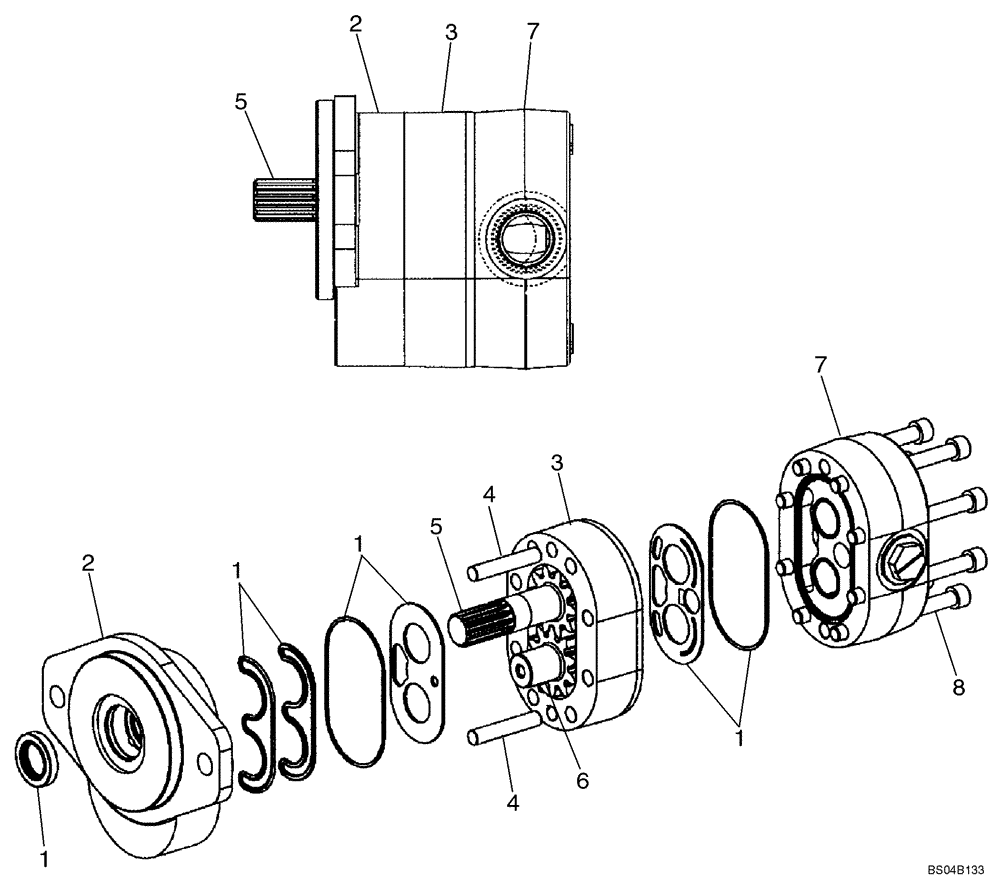

Схема запчастей Case IH 445 - (06-16) - PUMP, GEAR (WITHOUT HIGH FLOW) (06) - POWER TRAIN
3
3
1
2
1
1
4
7
2
5
5
7
4
6
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024695

PUMP,36 CC

Incl. 1 - 8; Models Without High Flow

1шт.

87024695R

445 BSN N7M454787 (3/04-12/07), 445CT BSN N8M458846 (4/05-12/07)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

87042214

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drve

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.
