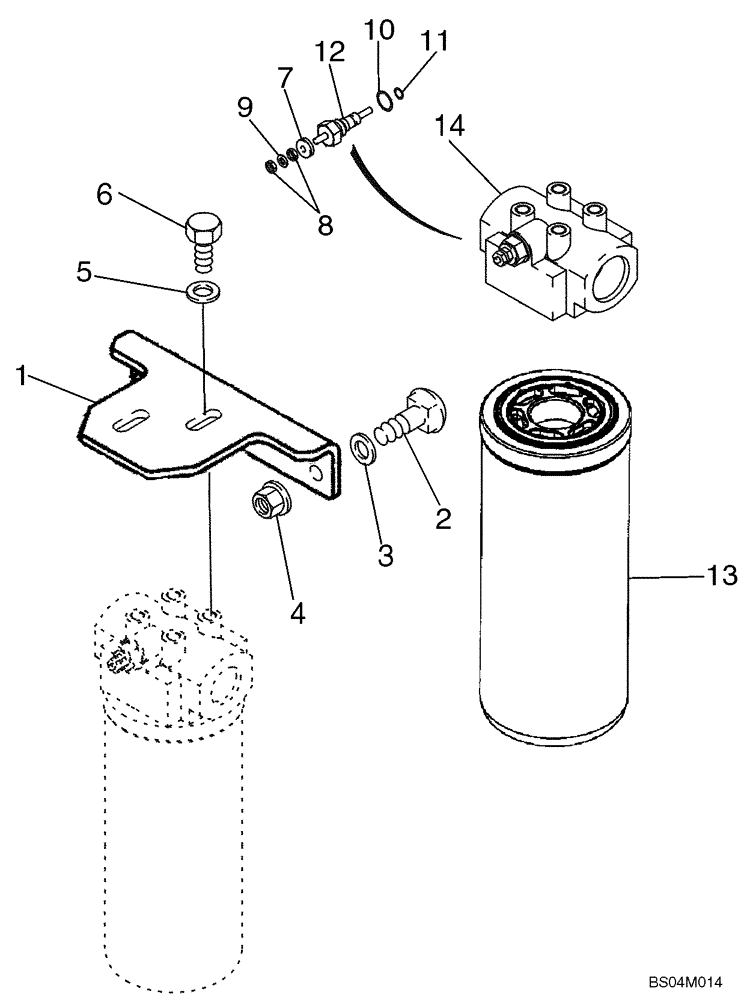

Запчасти Case IH 445 (06-08) - FILTER ASSY - MOUNTING (06) - POWER TRAIN

1

87458340

ANGLE

Hydrostatic Filter Mounting

1шт.

2

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

No Longer Used, Order 86512446

2шт.

2

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

4

100016

NUT,M10 x 1.5, Cl 8

2шт.

5

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

87430661

FILTER

Hydrostatic Filter; Return; Incl. 6 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

Washer; Red, White

1шт.

8

129-667

NUT,#10-32, LH

2шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

9672548

O-RING,-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Body

1шт.

13

87010593

ELEMENT

Hydrostatic Filter

1шт.

14

87439984

FILTER HEAD

Incl. N13268

1шт.

N13268

PRESSURE SWITCH

Hydrostatic Filter; Incl. 7 - 12

1шт.
