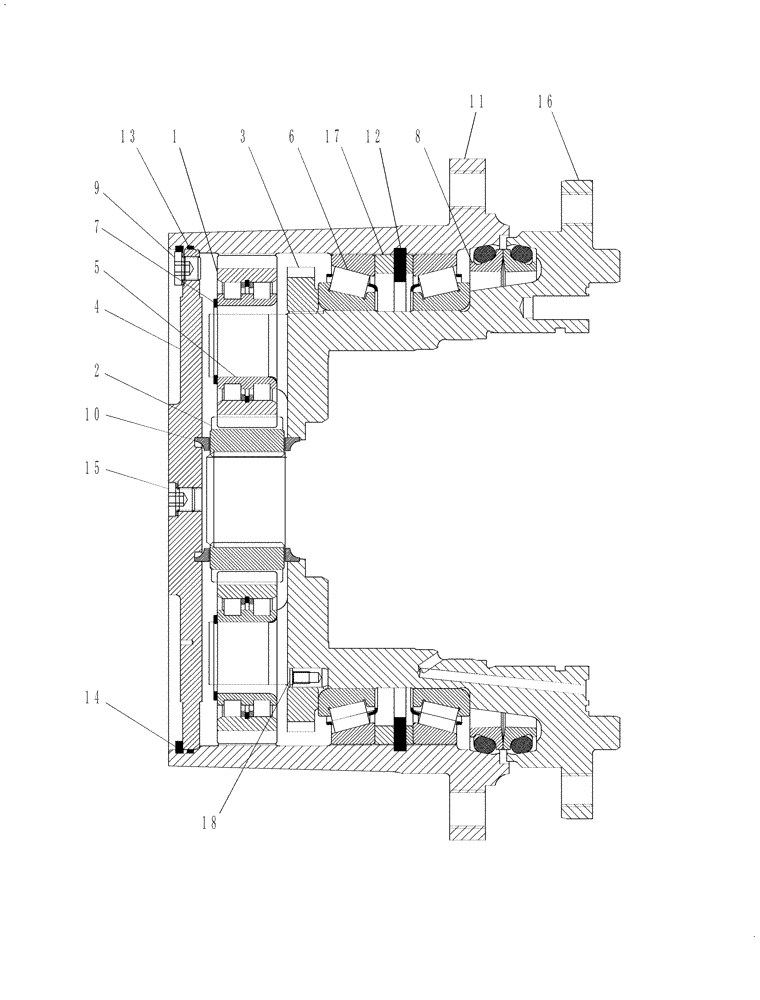

Запчасти Case IH 445 (06-05F) - MOTOR ASSY. - REXROTH 2 SPEED CTL DRIVE MOTOR (445CT) (06) - POWER TRAIN

1

84305307

PLANETARY GEAR

4шт.

2

84305308

SUN GEAR

1шт.

3

84305309

Bearing Adjust

NUT

1шт.

4

87612445

COVER

Track Motor

1шт.

5

84305310

DIN 5412

BEARING, ROLLER, CYL

4шт.

6

84305311

Planetary

TAPERED BEARING

2шт.

7

84305313

RING

Retaining Ext 30x1

4шт.

8

NSS

NOT SOLD SEPARAT

Face Seal, See Figure 06-05C For Kit

1шт.

9

87575213

PLUG

Drain, M10x1

2шт.

10

84305314

Sun Gear

THRUST WASHER

2шт.

11

84305315

Ring Gear

HOUSING

1шт.

12

84305316

RING

Retaining Int 205x5

1шт.

13

87612446

O-RING

O-Ring 210x3.00 Viton

1шт.

14

87575214

SNAP RING

Cover

1шт.

15

87579238

PLUG

M16x1.5

1шт.

16

84305500

Spindle, Planetary

HOUSING

1шт.

17

84305501

Bearing

SPACER

2шт.

18

84305502

STRAIGHT PIN

M8x16

2шт.
