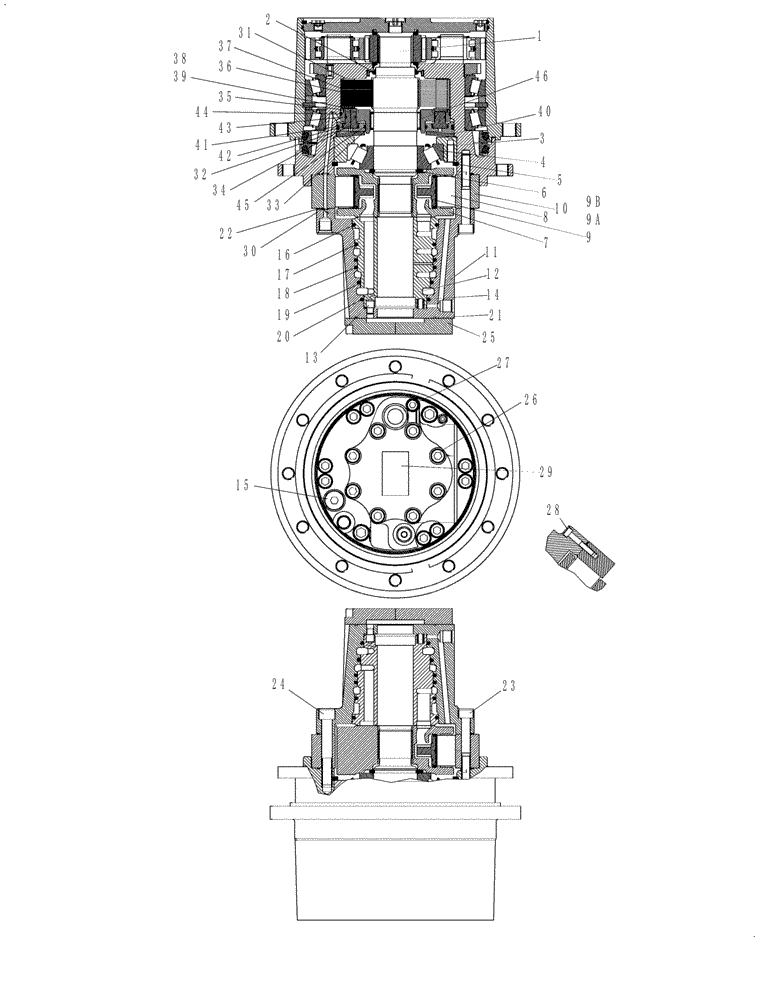

Запчасти Case IH 445 (06-05D) - MOTOR ASSY. - REXROTH 2 SPEED CTL DRIVE MOTOR (445CT) (06) - POWER TRAIN

1

84305195

GRN8 Motor

SHAFT

1шт.

2

84305194

Shaft, GRN8 Motor

OIL SEAL

1шт.

3

84305193

RING

Bearing Support, GRN8 Motor

1шт.

4

84305191

ROLLER BEARING

Tapered, 50x110x29.25

1шт.

5

84305190

Retaining, Internal 140 Dia.

RING

1шт.

6

84305189

RING

Snap EXT 50mm

1шт.

7

84305187

CYLINDER BLOCK

1шт.

8

84305186

Stepped

ROLLER

8шт.

9

84305185

PISTON

8шт.

10

84305181

CAM

1шт.

11

84305180

Rear, Motor

CASE

1шт.

12

84305179

Ring

DISTRIBUTOR

1шт.

13

87042911

PIN

Stop

1шт.

14

87042912

SPRING

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

16

84305284

SEALRING Piston

SEALING RING

1шт.

17

84305285

SEALRING Piston

SEALING RING

1шт.

18

84305286

SEALRING Rod

SEALING RING

2шт.

19

84305287

SEALRING Rod

SEALING RING

1шт.

20

84305288

SEALRING Rod

SEALING RING

1шт.

21

84305291

SEALRING Ring

SEALING RING,1.68mm Thk x 85.26mm ID, 75 Duro

1шт.

22

84305292

SEALRING Ring

SEALING RING,1.68mm Thk x 171.5mm ID, 75 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

Screw, Hex Soc Hd M10x80

8шт.

24

NSS

NOT SOLD SEPARAT

Screw, Hex Soc Hd M12x75

2шт.

25

84305293

COVER PLATE

End Rear Case

1шт.

26

86528768

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.

27

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

1шт.

28

NSS

NOT SOLD SEPARAT

Screw, Hex Soc Hd M6x35

1шт.

29

NSS

NOT SOLD SEPARAT

Label, Bar Coded

1шт.

30

87477177

O-RING

5.28x1.78 Viton

2шт.

31

84305295

117x93x0.89

WASHER,117mm ID x 93mm OD x 0.89mm Thk

1шт.

32

84305298

Brake

PISTON

1шт.

33

84305300

SEALRING Brake

SEALING RING

1шт.

34

84305301

Stepped, Brake

PIN

6шт.

35

NSS

NOT SOLD SEPARAT

Brake Plate, Inner

17шт.

36

NSS

NOT SOLD SEPARAT

Brake Plate, Outer

18шт.

37

NSS

NOT SOLD SEPARAT

Shim, Brake

1шт.

38

NSS

NOT SOLD SEPARAT

Shim, Brake

1шт.

39

84305296

WASHER,118mm ID x 88mm OD x 3.6mm Thk

118x88x3.6

1шт.

40

84305303

134x70x4, LO-8.1

BELLEVILLE SPRING

1шт.

41

84305304

SEALRING Brake Piston, 127x2x4.36 Viton

SEALING RING,4.36mm Thk x 127.2mm ID

1шт.

42

14453381

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

6шт.

43

86625100

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

6шт.

44

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

1шт.

45

84305305

66.35x2.62 Viton 70

O-RING,2.62mm Thk x 66.35mm ID, 70 Duro

1шт.

46

84305306

Drawn Cup 50x58x20

NEEDLE BEARING

1шт.
