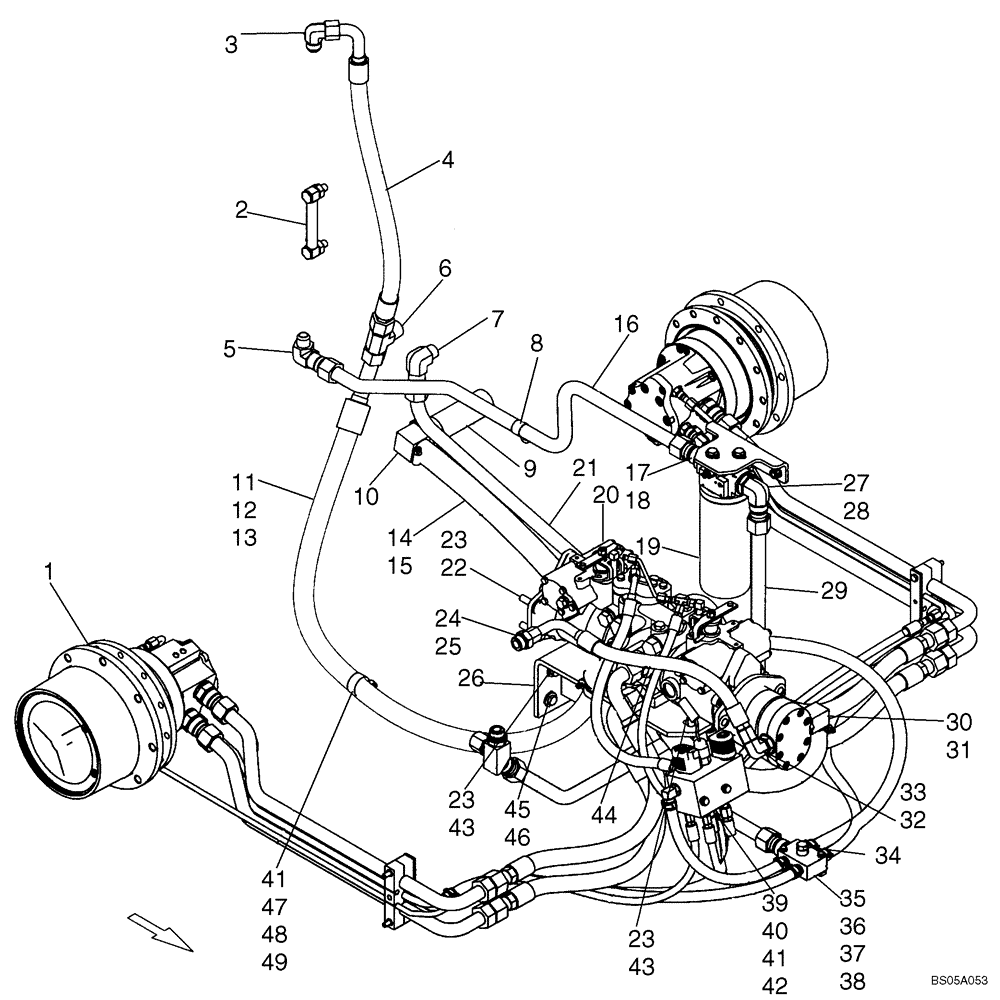

Запчасти Case IH 445 (06-05) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (445CT) (06) - POWER TRAIN

1

REF

INSTRUCTION

See Figure 06-05B

1шт.

2

87374752

GAUGE

Replaces 87424266

1шт.

3

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

4

87437433

HOSE ASSY.

Cooler To Tank

1шт.

4

87460904

HOSE ASSY.

Cooler To Tank; 687 mm (27 in) If Used

1шт.

5

87038696

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

6

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

7

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

8

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

189310A1

STRAINER ASSY.

Suction Line

1шт.

10

87029969

HYD CONNECTOR

Elbow, 90 deg Stem, 1-1/4 Stem x 1-1/4 NPTF; Replaces 217-137 Fitting

1шт.

11

87458870

HOSE

1612 mm (63.46 in); If Used

1шт.

11

87014038

HOSE

1332 (52.44 in); If Used

1шт.

12

87418259

FITTING

90

1шт.

13

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

14

87015461

HOSE

1шт.

15

87039085

HOSE CLAMP,32mm - 54mm

2шт.

16

87437497

HYD TUBE,25.40 mm OD

Cooler In

1шт.

17

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl. 18

1шт.

18

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

See Figure 06-08

1шт.

20

87043501

PUMP

Tandem Pump, Order Components; Incl. 87043502 Pump, 87024695 Gear Pump, 87013729 O-Ring

1шт.

87043502

PUMP

See Figure 06-10 - 06-15

1шт.

87043502R

Remanufactured Hydraulic Pump

REMAN-HYD PUMP

1шт.

87043502C

Return Number

CORE-HYDRAULIC PUMP

1шт.

87024695

PUMP,36 CC

See Figure 06-16

1шт.

87024695R

445CT BSN N8M458846 (4/05-12/07)

REMAN-HYD PUMP

1шт.

87024695C

Return Number

CORE-HYDRAULIC PUMP

1шт.

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

21

87437352

HYD TUBE,25.40 mm OD

Case Drain

1шт.

22

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

23

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

24

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl. 25

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87020365

SUPPORT ASSY.

1шт.

27

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl. 28

1шт.

28

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

29

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

30

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Stem; Incl. 31

1шт.

31

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 33

1шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

76349

PLUG,9/16" - 18 ORB

1шт.

35

87437351

MANIFOLD

1шт.

36

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

37

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

38

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6-1

2шт.

39

87429625

HYDRAULIC VALVE

Two Speed Brake Valve; See Figure 06-07

1шт.

39

87352524

BRAKE VALVE

Two Speed Brake Valve; See Figure 06-07; Replaces 87429625

1шт.

40

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

41

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

42

9628098

NUT,M8 x 1.25, Cl 10

2шт.

43

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

44

87459284

HOSE

Valve Supply

1шт.

45

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

46

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

47

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

48

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

49

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.
