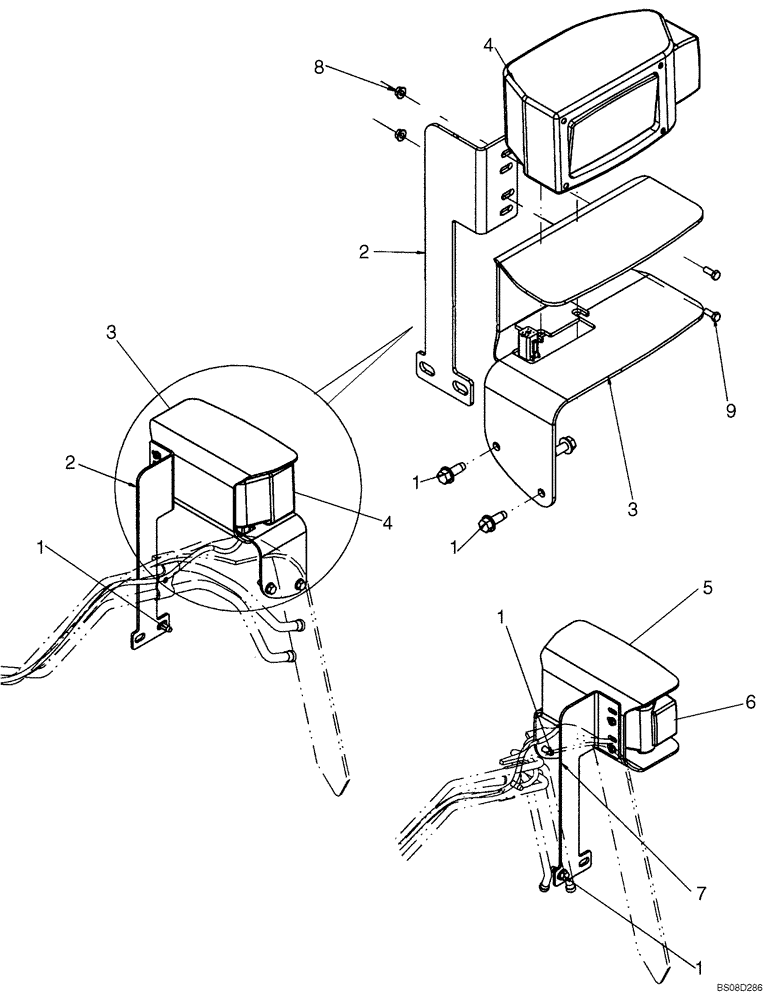

Запчасти Case IH 440 (04-18A) - HEADLAMPS AND MOUNTING (NA) (04) - ELECTRICAL SYSTEMS

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

2

87736221

BRACKET, SUPPORTING

Support Bracket, LH

1шт.

3

87720246

BRACKET

Light Bracket, LH

1шт.

4

85821385

LH HEADLAMP,12V

See Fig 04-21

1шт.

5

87720245

BRACKET

Light Bracket, RH

1шт.

6

85821384

RH HEADLAMP,T4W, 12V, 4W

See Fig 04-20

1шт.

7

87736223

BRACKET, SUPPORTING

Light Bracket, RH

1шт.

8

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

10

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

2шт.

11

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

D55218

SEAL, GLASS,76mm L

Trim Edge

2шт.
