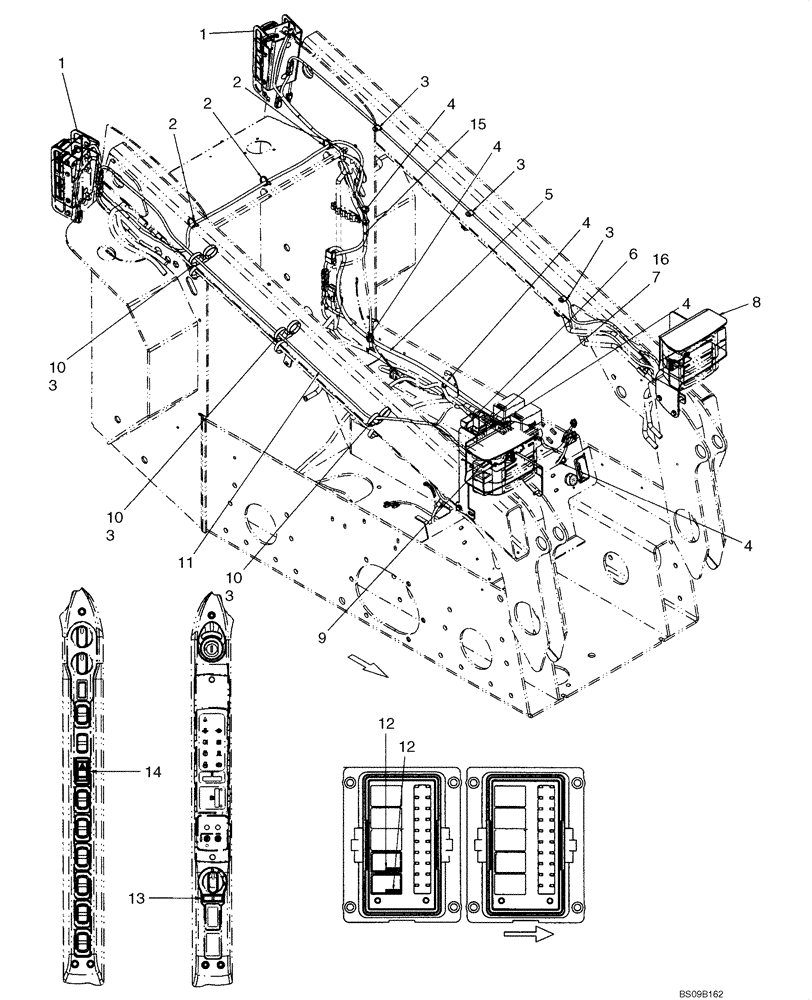

Запчасти Case IH 440 (04-18) - ELECTRICAL - ROAD LIGHTS (NA) (04) - ELECTRICAL SYSTEMS

87676259

SERVICE KIT

Kit, Road Lights (NA); Incl 1 - 18

1шт.

1

REF

INSTRUCTION

Rear Lights; See Fig 04-22

2шт.

2

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

3

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

If Used

3шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

5

87673072

HARNESS

Harness, Road Lights; If Used

1шт.

5

87749674

HARNESS

Harness, Road Lights

1шт.

6

83982664

RELAY

Turn Signal Relay

1шт.

7

9821783

FLASHER UNIT

1шт.

8

REF

INSTRUCTION

Headlamp Mounting, LH; See Fig 04-19A

1шт.

9

REF

INSTRUCTION

Headlamp Mounting, RH; See Fig 04-19A

1шт.

10

87659208

CIRCLIP

Strap, Dual Tie Releasable; If Used Replaced By Ref 3

3шт.

11

87673079

HARNESS

Harness, Turn Signal

2шт.

12

87655334

RELAY,12V, 35A, Micro

Relay

1-2шт.

13

86604657

INDICATOR, TURN SIGN

1шт.

14

87634133

SWITCH

Rocker Switch, Hazard Lights

1шт.

15

87673077

HARNESS

Turn Signal Harness (CP)

1шт.

16

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

2шт.
